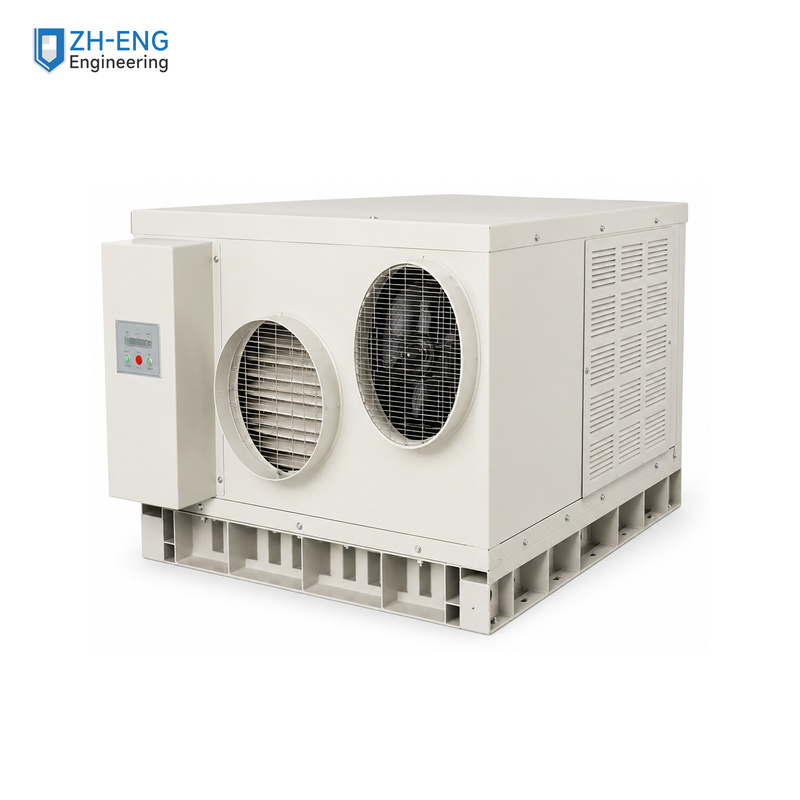

TK-26Y/Q1 Cooling-Only Elevator Air Conditioner
Compact elevator-cabin air conditioner with front air supply and return. The cooling-only TK-26Y/Q1 provides 2600 W cooling capacity with automatic program control and an infrared remote.
Cooling and installation specifications
| Parameter | Specification |
|---|---|
| Cooling capacity | 2600 W |
| Cooling input power | 930 W |
| Cooling input current | 4.3 A |
| Airflow, high / low | 400 / 330 m³/h |
| Power supply | 220–230 V AC, 50 Hz; 60 Hz option listed |
| Refrigerant | R410A |
| Noise | < 53 dB(A) |
| Water protection | IP24 |
| Electrical protection class | I |
| Dimensions, L × W × H | 545 × 455 × 403 mm |
| Mass | 39 kg |
| Air supply / return | Front / front |
| Control | Automatic program and infrared remote control |
| Recommended car capacity | Up to 2000 kg |
Installation planning
The overall envelope is 545 × 455 × 403 mm. Check the car-top arrangement, air supply and return paths, and the electrical supply before ordering.
Maintenance
Clean the air filters regularly; the maintenance guide recommends a 30-day cleaning interval. Inspect operation and unusual cabin temperature or noise, and have abnormal operation checked by a qualified technician.
