Which models are covered by this page?
Only SH-GDC-3N and SH-GDC-3P. Select NPN or PNP to match the controller input.
ZH-ENG · Elevator sensing
SH-GDC-3N / SH-GDC-3P Photoelectric Level Sensor
GDC-3 elevator photoelectric level sensor with NPN and PNP selections. Only the GDC-3 configurations attached to this main link are released here.
SH-GDC-3N / SH-GDC-3P

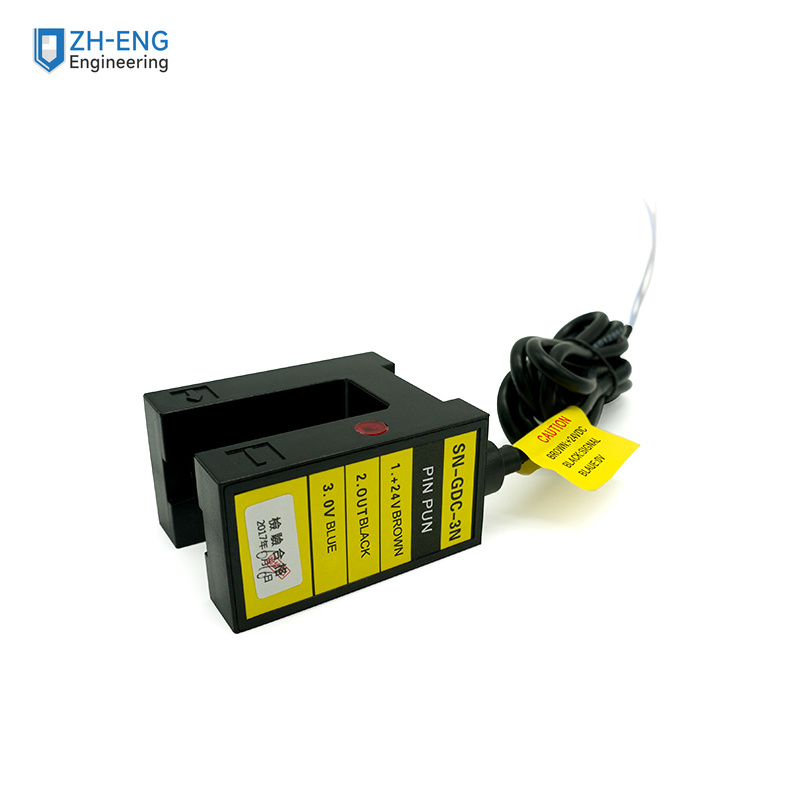

Same GDC-3N label, rectangular U-shaped housing, cable entry, indicator and 24 mm slot geometry as the manufacturer page. The PNP model option uses the same GDC-3 mechanical envelope.
Specifications
| Parameter | Specification |
|---|---|
| Supply voltage | DC 12–24 V, polarity protected |
| Output selection | SH-GDC-3N: NPN; SH-GDC-3P: PNP |
| Control output | <80 mA |
| No-load current | <20 mA at 24 V |
| Light immunity | 60,000 lux |
| Response time | ≤1 ms |
| Indicator | Lights when blocked |
| Protection level | IP65 |
| Working temperature | −25 to +60 °C |
| Storage temperature | −25 to +80 °C |
| Relative humidity | 80–90% RH |
| Pulse interference withstand | ±2 kV, as listed |
| Overall envelope | 69 × 56 × 38 mm |
| Slot callout | 24 mm |
Dimensions and installation
Selection questions
Are the mechanical dimensions shared by 3N and 3P?
Yes. The output mode changes, while the supplied GDC-3 manufacturer page uses the same 69 × 56 × 38 mm envelope.
What must be confirmed before wiring?
Confirm DC 12–24 V supply, NPN or PNP input compatibility, cable assignment and the physical slot position.
Frequently Asked Questions
What type of product is SH-GDC-3N?
SH-GDC-3N is listed as Elevator Photoswitch.
Which specifications are listed for SH-GDC-3N?
Supply voltage: DC 12–24 V, polarity protected. Output selection: SH-GDC-3N: NPN; SH-GDC-3P: PNP. Control output: <80 mA.
What should be checked before ordering SH-GDC-3N?
Confirm the complete model suffix, supply voltage, output or contact logic, sensing distance, cable termination and mounting dimensions against the installed component, its nameplate and the approved project document before ordering SH-GDC-3N.
