Strict load subset
Only the manufacturer rows for 2000 kg and 3000 kg are included; this page does not restate the broader main-record range.
ZH-ENG · Freight handling
Freight Elevator — 2000 / 3000 kg manufacturer Subset
A bounded freight-elevator supplement covering only the brochure-confirmed 2000 kg and 3000 kg machine-room and machine-room-less configurations at 0.5 m/s.
Application and Configuration
MR and MRL
The manufacturer supplies machine-room EM280C and machine-room-less EM280NC design references.
0.5 m/s manufacturer speed
All four released manufacturer rows use a rated speed of 0.5 m/s.
Product and Technical Drawings

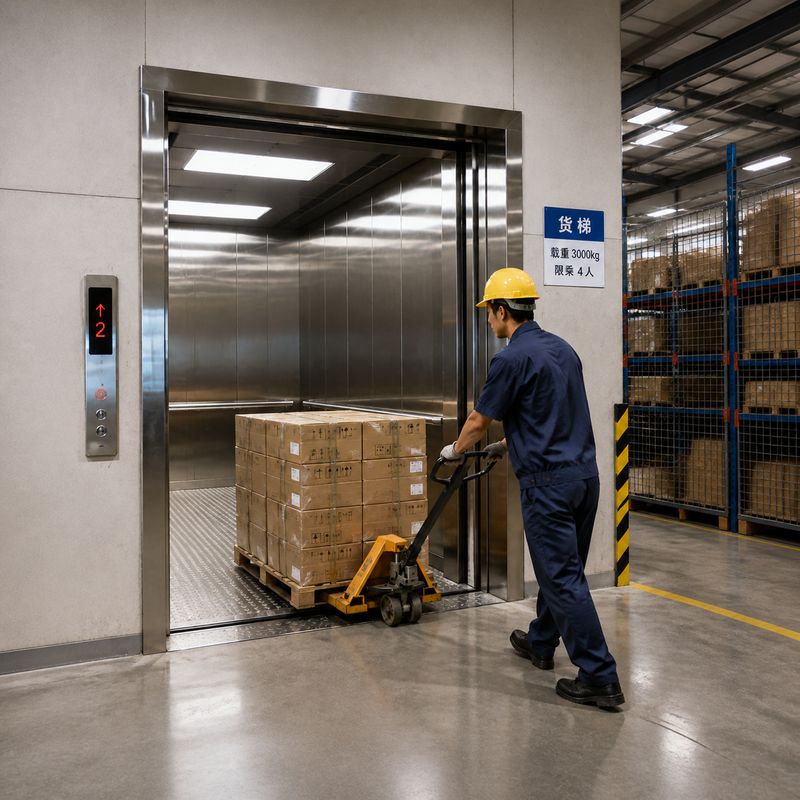

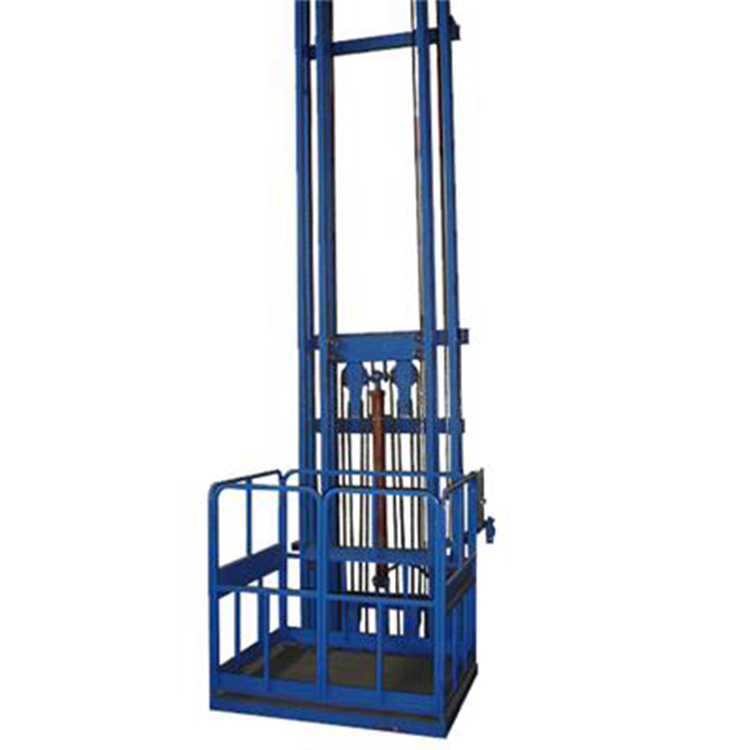

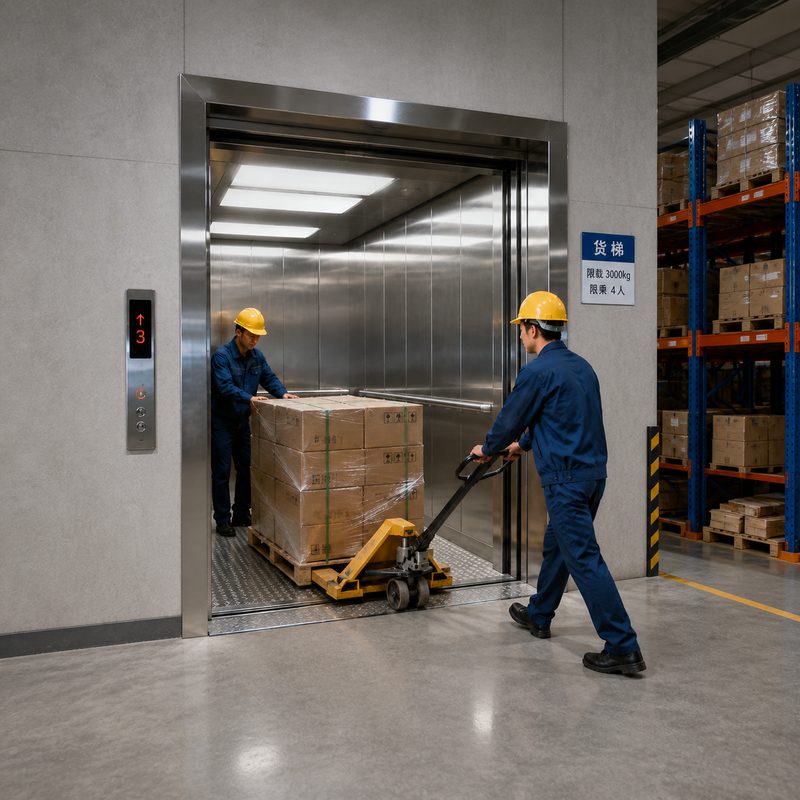

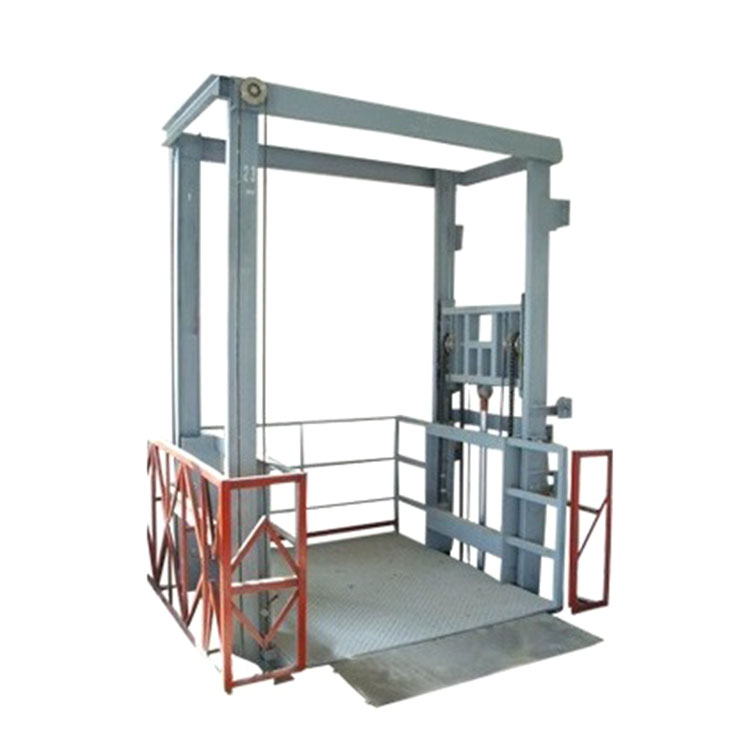

The product scenes and technical material identify the freight-elevator manufacturer family. Only the 2000 kg and 3000 kg rows are released in this supplement.
Specifications and Selection Data
Released manufacturer subset
| Arrangement | manufacturer model | Load | Speed | Car (W×D×H) | Door (W×H) | Hoistway (W×D) | Pit | Overhead |
|---|---|---|---|---|---|---|---|---|
| Machine room | EM280C | 2000 kg | 0.5 m/s | 1700×2400×2200 mm | 1500×2100 mm | 2800×2800 mm | 1500 mm | 4350 mm |
| Machine room | EM280C | 3000 kg | 0.5 m/s | 2000×2800×2200 mm | 1800×2100 mm | 3300×3400 mm | 1600 mm | 4600 mm |
| Machine room-less | EM280NC | 2000 kg | 0.5 m/s | 1700×2400×2200 mm | 1500×2100 mm | 2800×2800 mm | 1500 mm | 4850 mm |
| Machine room-less | EM280NC | 3000 kg | 0.5 m/s | 2000×2800×2200 mm | 1800×2100 mm | 3300×3400 mm | 1600 mm | 5000 mm |
No other loads or speeds are claimed from this brochure page.
This is a limited manufacturer supplement for a broader main-product family. Do not extend the listed dimensions or speed to loads outside the 2000 kg and 3000 kg rows.
Project confirmation
- Required load: 2000 kg or 3000 kg
- Machine-room or machine-room-less arrangement
- Car, door and hoistway dimensions
- Pit and overhead from the selected row
- Door arrangement, finishes, travel, stops, power and compliance
Frequently Asked Questions
Does this page cover the entire main-record range?
No. It deliberately covers only the brochure-confirmed 2000 kg and 3000 kg subset.
Are both arrangements available in the manufacturer?
Yes. EM280C is the machine-room reference and EM280NC is the machine-room-less reference.
Are the images exact code photographs?
No. They identify the confirmed freight-elevator manufacturer family and product application.
