Can the photograph be used to determine installation dimensions?
No. Check the dimension drawing and selected model before cutting or drilling the panel.
ZH-ENG · Elevator ventilation
SH-EF-BRB01 Elevator Fan

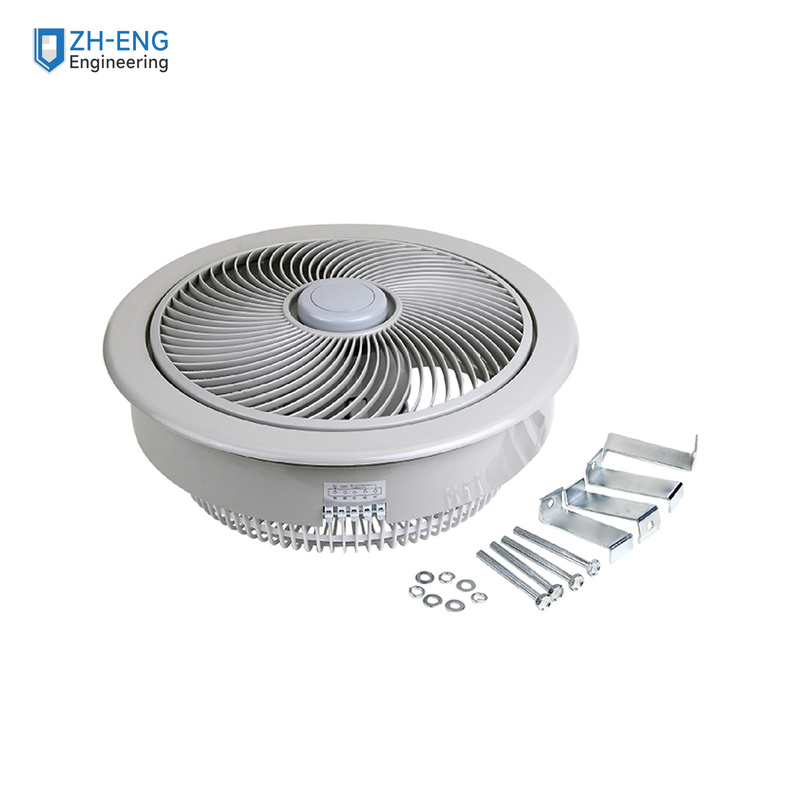

Round elevator ceiling fan with a multi-wing impeller and separate mounting hardware.
Product overview
Specifications
| Parameter | Specification |
|---|---|
| Overall diameter | 376 mm |
| Nominal fan size | 300 mm |
| Rated frequency | 50 / 60 Hz |
| Motor type | Capacitor induction |
| Bearing | Ball bearing |
| Impeller | Reinforced plastic |
| Frame | Steel |
| Operating temperature | −20 to +60 °C |
Dimensions and installation
Selection questions
What information should be specified when ordering?
Provide the full fan model, required supply voltage and frequency, mounting dimensions and any required speed suffix.
Frequently Asked Questions
What type of product is SH-EF-BRB01?
SH-EF-BRB01 is listed as Elevator Fan.
Which specifications are listed for SH-EF-BRB01?
Overall diameter: 376 mm. Nominal fan size: 300 mm. Rated frequency: 50 / 60 Hz.
What should be checked before ordering SH-EF-BRB01?
Confirm the nameplate voltage and frequency, fan dimensions, mounting points, airflow direction and connector or lead arrangement against the installed component, its nameplate and the approved project document before ordering SH-EF-BRB01.
