SH-MLS-61U
MLS-61U is a sealed cylindrical elevator leveling magnetic sensor with front triggering, screw fixation and a two-wire connection.

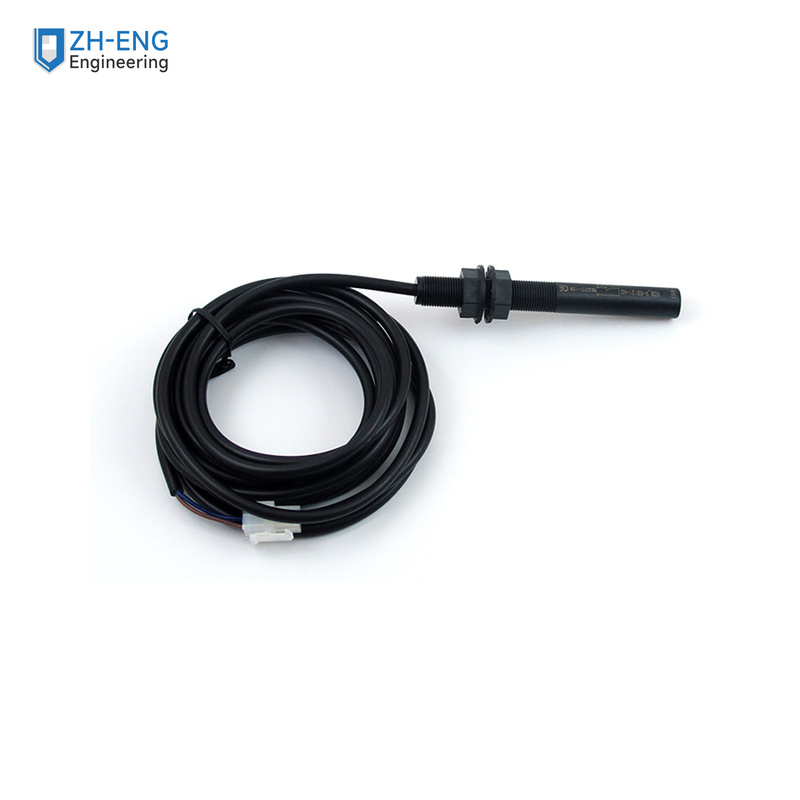

Product views
Specifications and functions
| Product | Elevator leveling magnetic sensor / magnetic switch |
|---|---|
| Main model mapping | SH-MLS-61U = KCB-R-59121-NO 61U |
| Child model mapping | SH-MLS-61N = KCB-R-59121-NO 61N |
| Switch behavior | Mono-stable normally-open version; normally-closed options exist in the broader family |
| Fixing | Screw fixation |
| Connection | Two-wire connection |
| Construction | Sealed cylindrical sensor with front triggering |
| Selection | Sensitivity and cable length vary by configuration; verify the exact 61U/61N marking before ordering |
Selection and installation
Confirm the exact model, power/voltage class, connector arrangement and system generation before ordering. Installation and commissioning must be performed by qualified elevator personnel using the applicable system documentation.
Frequently Asked Questions
What switch behavior is listed for MLS-61U?
MLS-61U is listed as a mono-stable normally-open magnetic sensor.
How is the sensor connected and fixed?
The listed construction uses a two-wire connection and screw fixation.
What should be matched before replacement?
Match the exact 61U marking, switch behavior, power class, cable arrangement, sensitivity and mounting position. The related 61N entry must not be assumed interchangeable.
