SH-TMYJ300
SH-TMYJ300 traction machine series with 4 listed configurations.

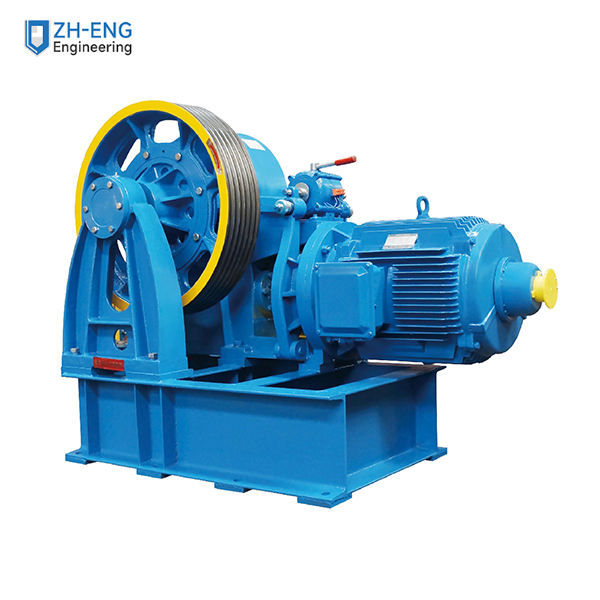

Product View
One clean product view is shown for this series. Configurations sharing the same appearance are listed in the specification table below.
Specifications
The main configuration and linked model option configurations are grouped in one table.
| Configuration | Rated load | Rated speed | Roping | Rated power |
|---|---|---|---|---|
| SH-TMYJ300 — 2500 kg / 0.5 m/s | 2500 kg | 0.5 m/s | 1:1 | 18.5 kW |
| SH-TMYJ300 — 5000 kg / 0.25 m/s | 5000 kg | 0.25 m/s | 2:1 | 18.5 kW |
| SH-TMYJ300 — 2500 kg / 1.0 m/s | 2500 kg | 1.0 m/s | 1:1 | 25 kW |
| SH-TMYJ300 — 5000 kg / 0.5 m/s | 5000 kg | 0.5 m/s | 2:1 | 25 kW |
Technical Drawing and Dimensions
Use the complete installation drawing below to check mounting dimensions and clearances.
| Configuration | Rated load | Rated speed | Dimensional applicability |
|---|---|---|---|
| SH-TMYJ300 — 2500 kg / 0.5 m/s | 2500 kg | 0.5 m/s | Series dimensional drawing shown above |
| SH-TMYJ300 — 5000 kg / 0.25 m/s | 5000 kg | 0.25 m/s | Series dimensional drawing shown above |
| SH-TMYJ300 — 2500 kg / 1.0 m/s | 2500 kg | 1.0 m/s | Series dimensional drawing shown above |
| SH-TMYJ300 — 5000 kg / 0.5 m/s | 5000 kg | 0.5 m/s | Series dimensional drawing shown above |
Technical Range
Configuration and Installation Information
YJ300 mechanical and brake information for the listed configurations.
Frequently Asked Questions
What is TMYJ300-25-50?
TMYJ300-25-50 is identified by the verified source as a geared elevator traction-machine family.
What should be matched before ordering?
Specify the full model suffix and compare the original nameplate, connector or mounting arrangement, electrical ratings and approved equipment drawing.
Can a visually similar part be used automatically?
No. Similar parts can have different interfaces, ratings or software/configuration requirements; confirm the exact equipment application before replacement.
