SH-DS131 Elevator Car-Door Switch

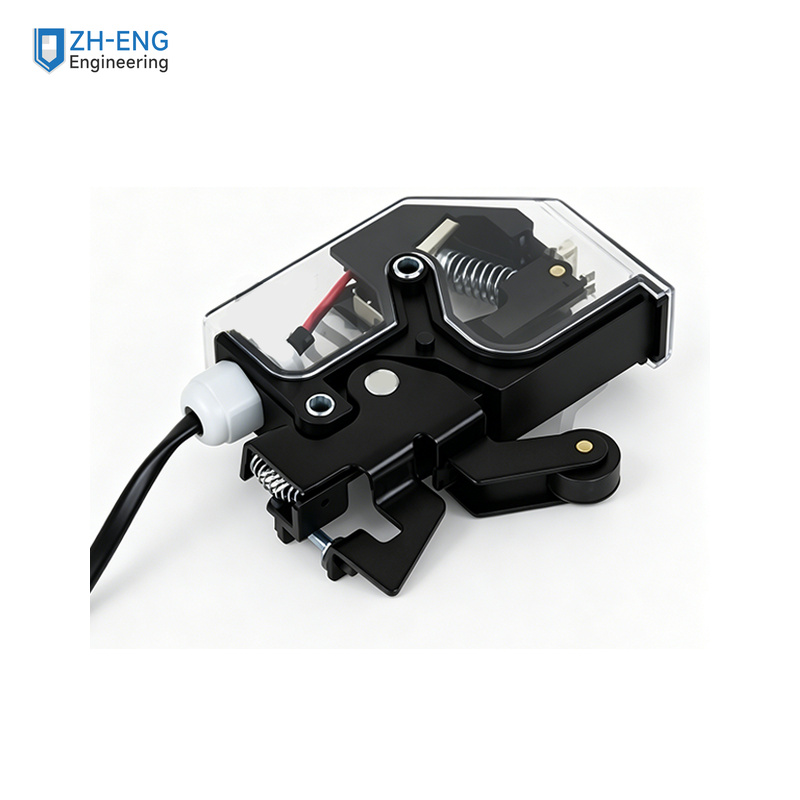

Mechanical car-door switch with an model-specific high-resolution product image and complete manufacturer outline drawing.
Product Reference
SH-DS131
Specifications
| Parameter | Specification |
|---|---|
| Top-view overall length | 126 mm |
| Side-view base envelope | 122 mm |
| Overall height | 107.5 mm |
| Overall width | 30 mm |
No electrical contact rating is stated on the supplied sheet; circuit rating and contact logic must be confirmed for the installation.
product Configurations
Existing model option configurations are grouped on the main link. A model option row does not inherit images or parameters beyond its own available information.
| Model | Existing configuration | Role |
|---|---|---|
| SH-DS131 | DS-131 | MAIN |
Product and Technical Drawings
Selection Questions
How was the product image selected?
The exact-code high-resolution library file was compared with the model-labelled product appearance on the archived manufacturer page before reuse.
Do the listed values apply to similar-looking products?
No. The values are bound to the named model and manufacturer figure; similar appearance alone is not an acceptable match.
What still needs checking before installation?
Confirm the ordered configuration, installation interface and applicable project requirements against the supplied unit and project documents.
