HTB-40L34C10-30F1024B-S8 Hollow-Shaft Encoder
A hollow-shaft elevator encoder identified by its complete label, with a 1024-resolution suffix and printed supply and signal-wire legend.
Product Model and Features
Commercial modelHTB-40L34C10-30F1024B-S8
Product identityHTB-40L34C10-30F1024B-S8 Hollow-Shaft Encoder

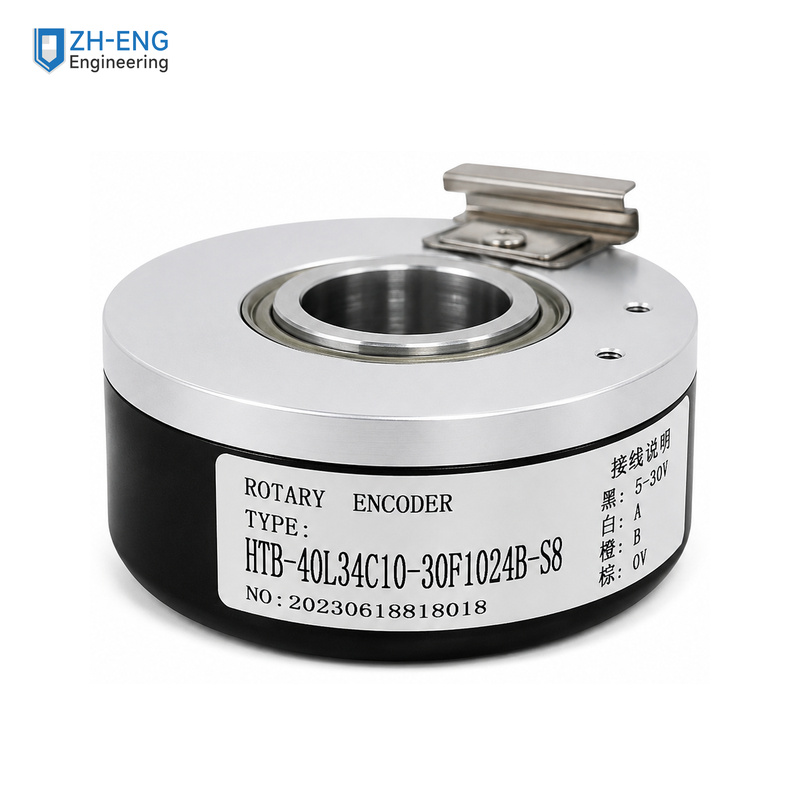

Product View
Product Information and Specifications
| Item | Information |
|---|---|
| Product type | Hollow-shaft elevator encoder |
| Exact model | HTB-40L34C10-30F1024B-S8 |
| Resolution suffix | 1024 |
| Supply shown on label | 5–30 V; black wire |
| Channel A | White wire |
| Channel B | Orange wire |
| 0 V | Brown wire |
| Connection form | Attached cable and D-sub connector visible |
Before You Buy
- Match every character of the HTB-40L34C10-30F1024B-S8 label and the 1024-resolution suffix.
- Compare the hollow-shaft mechanical fit, housing, mounting arrangement and available clearance.
- Follow the exact label wire legend and verify the controller-side connector before connection.
Frequently Asked Questions
Which supply and signal-wire legend is printed on the encoder?
The exact label shows black for 5–30 V, white for channel A, orange for channel B and brown for 0 V.
Which resolution is identified by this model?
The complete model includes the F1024B suffix, identifying the 1024-resolution configuration.
Which mechanical details still determine replacement fit?
The complete model must be matched together with the hollow-shaft fit, mounting arrangement, housing clearance, cable and controller-side connector.
