SH-EL-A1A30-7LNB1/1024-JRE
Product code SH-01150017. The model and specifications below are matched to the current independent-store record and the newly supplied product material.

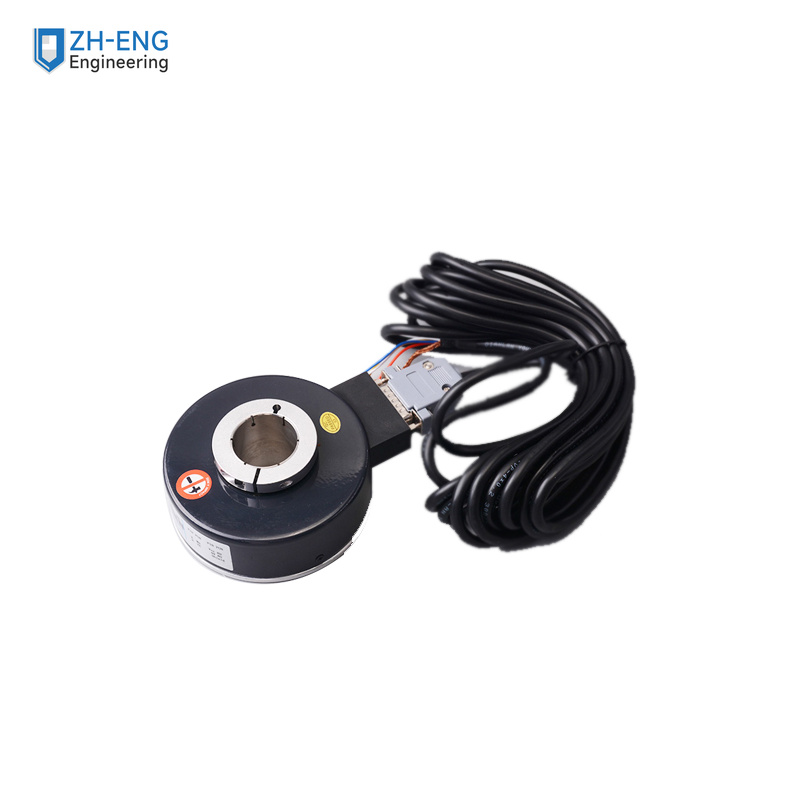

Product views
Specifications and functions
| Product | Elevator hollow-shaft rotary encoder |
|---|---|
| Main model | EL-A1A30-7LNB1/1024-JRE, 30 mm bore |
| Child bore variants | EL-A1A15, 15 mm; EL-A1A10, 10 mm |
| Resolution reference | 1024 |
| Supply marking | 8-30 V DC on the reviewed A30 assembly |
| Selection | Confirm the exact bore, complete suffix, cable and output circuit before ordering |
Selection and installation
Confirm the exact model, power/voltage class, connector arrangement and system generation before ordering. Installation and commissioning must be performed by qualified elevator personnel using the applicable system documentation.
