SH-EI58C9.25-2048-SA5N4T
Product code SH-01150035. The model and specifications below are matched to the current independent-store record and the newly supplied product material.

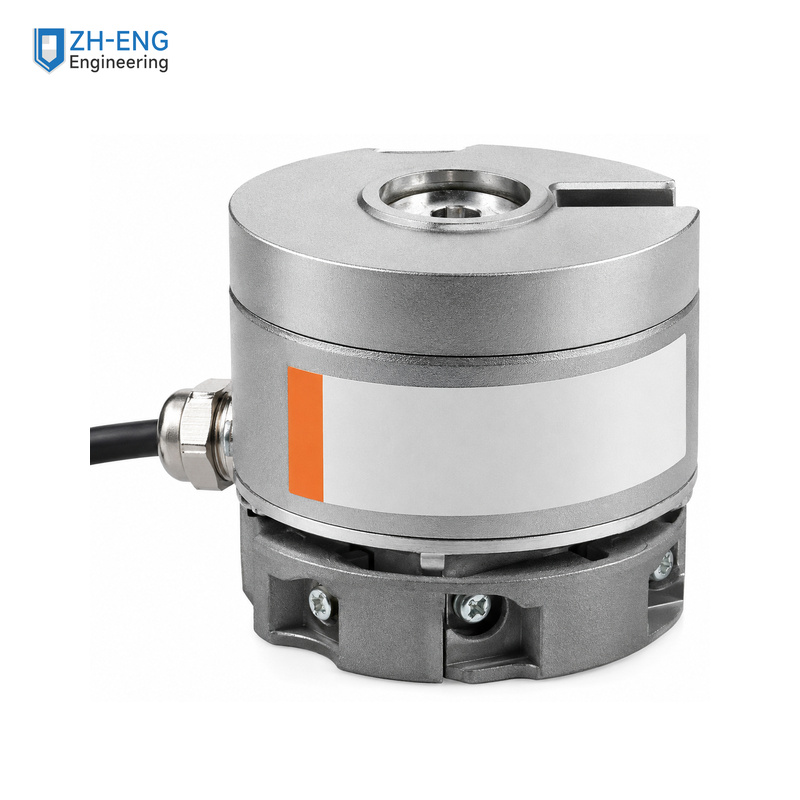

Product views
Specifications and functions
| Product | Elevator rotary encoder |
|---|---|
| Exact model | EI58C9.25-2048-SA5N4T |
| Body | 58 mm family |
| Shaft | 9.25 mm tapered hollow-shaft family |
| Resolution | 2048 P/R |
| Signal reference | 5 V, 1 Vpp sine/cosine |
| Connection | Integral cable and D-sub connector shown |
| Selection | Confirm the physical nameplate, connector pinout and mechanical fit before ordering |
Selection and installation
Confirm the exact model, power/voltage class, connector arrangement and system generation before ordering. Installation and commissioning must be performed by qualified elevator personnel using the applicable system documentation.
