TAA633K151 Main and Rescue Feedback Encoder
An elevator rotary encoder assembly providing a 4096 PPR main feedback channel and a 12 PPR rescue feedback channel, with a 1:10 conic shaft and dual connector arrangement.
Product Model and Features
Commercial modelTAA633K151
Product identityTAA633K151 Main and Rescue Feedback Encoder

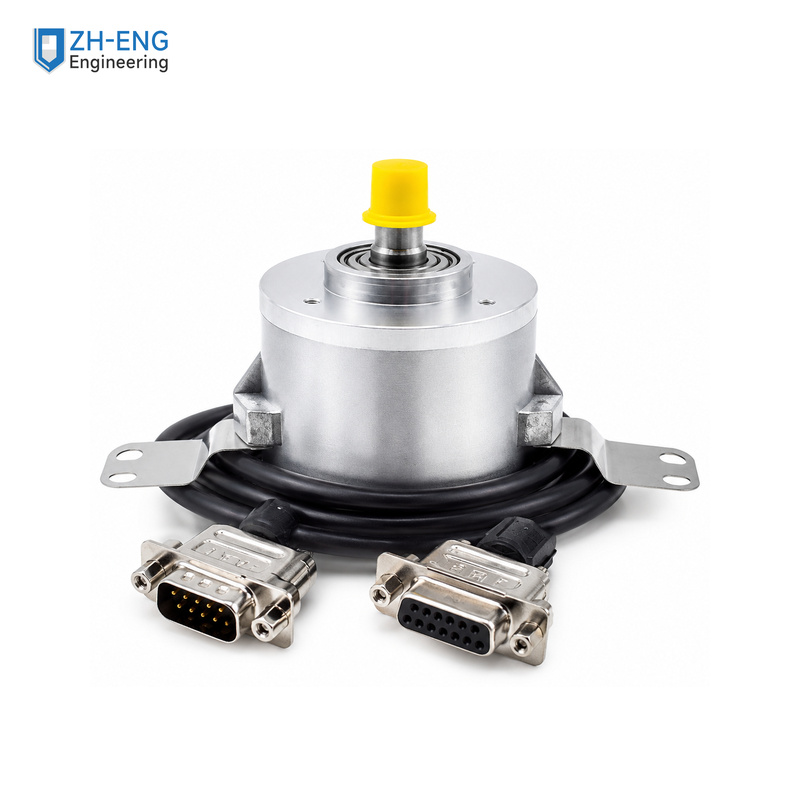

Product View
Product Information and Specifications
| Item | Information |
|---|---|
| Product type | Elevator rotary encoder with main and rescue feedback |
| Exact model | TAA633K151 |
| Manufacturer reference | TAA27076ADY401.E003 |
| Main resolution | 4096 PPR |
| Rescue resolution | 12 PPR |
| Shaft | Conic 1:10 |
| Visible main-encoder supply marking | DC +5 V |
| Visible connection | Two D-sub style connectors |
| Mounting | Twin mounting brackets |
Before You Buy
- Match the complete TAA633K151 and TAA27076ADY401.E003 references.
- Confirm the 4096 PPR main channel, 12 PPR rescue channel and 1:10 conic shaft.
- Compare connector gender, pinout, cable arrangement, bracket geometry and installation clearance before replacement.
Frequently Asked Questions
Which feedback resolutions are identified for TAA633K151?
TAA633K151 provides 4096 PPR main feedback and 12 PPR rescue feedback.
Which shaft form is specified?
TAA633K151 uses a 1:10 conic shaft.
What must match before replacement?
Match the complete model and manufacturer reference, both feedback channels, supply marking, shaft, connectors, pinout, bracket geometry and cable arrangement.
