Formula Systems SlimScreen FCU-0740 Light Curtain Set

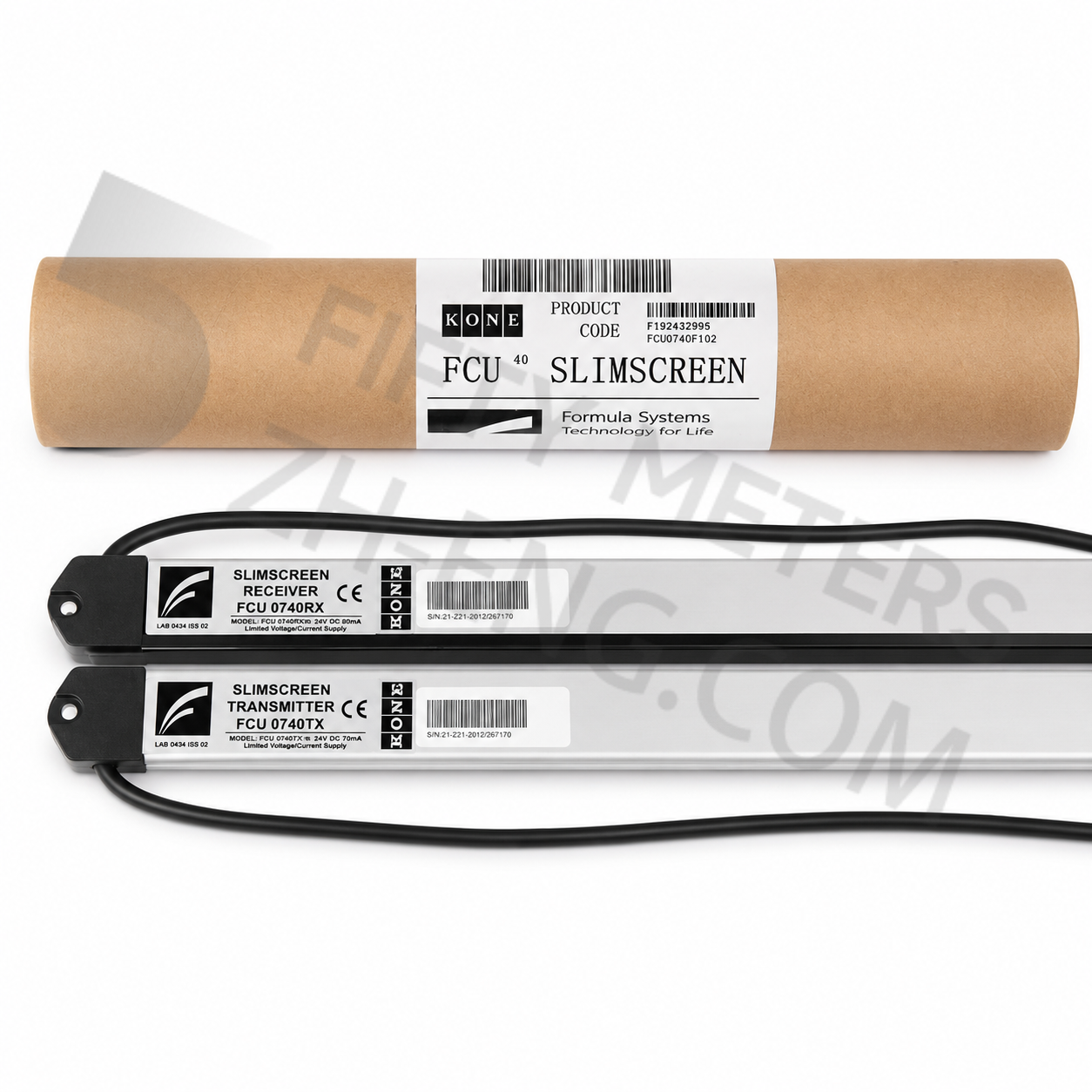

A Formula Systems SlimScreen FCU-0740 elevator-door light curtain using a paired FCU0740RX receiver and FCU0740TX transmitter. The pair labels identify package FCU0740F102, while the manufacturer datasheet defines the shared FCU-0740 operating characteristics.
Product Model and Features
Commercial modelFCU0740
Product identityFormula Systems SlimScreen FCU-0740 Light Curtain Set
Product View
Product Information and Specifications
| Item | Information |
|---|---|
| Product type | Elevator-door infrared light curtain |
| Manufacturer family | Formula Systems SlimScreen FCU-0740 |
| Set / package label | FCU0740F102 |
| Receiver label | FCU0740RX; 24 V DC; 80 mA |
| Transmitter label | FCU0740TX; 24 V DC; 70 mA |
| Optical arrangement | 40 beams; highest beam 1803 mm |
| Operating voltage | 24 V DC; manufacturer range 18-30 V DC |
| Response and output | Under 100 ms; NPN output; red obstruction indicator |
| Ingress protection | IP54 |
| Operating temperature | -20 to +70 °C |
| Scanning | Interleaved scan; 106 mm main-array spacing |
| Cable | 2.7 m total; initial 900 mm attached with screw-fit inline connection |
| Profile construction | Anodised aluminium-alloy case with infrared-transparent plastic cover |
Before You Buy
- Match the FCU0740F102 package label and both FCU0740RX and FCU0740TX edge labels.
- Confirm the 24 V DC installation, NPN receiver output and cable/connector arrangement used by the door system.
- Compare profile mounting, active height, door opening and wiring before replacement; the manufacturer family datasheet does not by itself prove a KONE part-number substitution.
Frequently Asked Questions
How many beams are specified for the FCU-0740 family?
Formula Systems SPEC0288 ISS 02 specifies a 40-beam arrangement with the highest beam at 1803 mm.
Which electrical characteristics apply to the FCU-0740 family?
The manufacturer datasheet specifies 24 V DC operation over an 18-30 V DC range, an NPN output, a red obstruction indicator and a response time under 100 ms.
Which values come from the supplied RX and TX labels?
The supplied labels identify FCU0740RX at 24 V DC and 80 mA, FCU0740TX at 24 V DC and 70 mA, and package code FCU0740F102. These suffix-specific label values are kept separate from the shared FCU-0740 datasheet values.
