SH-KS-1 Elevator Key Switch
Key-operated switches for elevator control panels. Each model is shown with its own appearance, mounting dimensions and panel-cutout drawing.
SH-KS-1

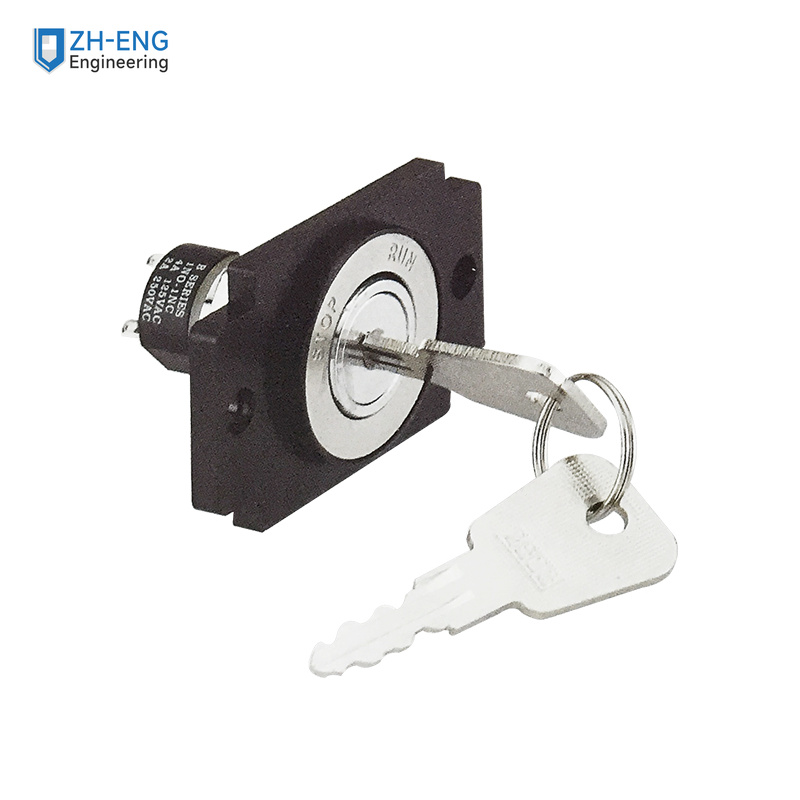

Round key barrel with rectangular mounting plate. Match the mounting interface and contact arrangement to the selected model.
| Parameter | Specification |
|---|---|
| Appearance | Round key barrel with rectangular mounting plate |
| Mounting plate | 60 × 39 mm |
| Mounting-hole spacing | 50 mm |
| Face diameter | 32 mm |
| Thread | M19 |
| Recommended panel hole | Ø19 mm with 16 mm across flats |
| Body depth callout | 31 mm |
| Face labels | STOP / RUN |
Dimensions and panel mounting
Selection Questions
How do I select the correct mounting size?
Use the panel-hole and body dimensions for the selected model, then compare them with the existing panel. Different models are not mechanically interchangeable.
Does a matching face shape confirm electrical compatibility?
No. Confirm the contact arrangement and electrical rating of the selected switch before connecting it to the control circuit.
Are matching keys or lock codes guaranteed across models?
No. Specify the required key and lock code when ordering; a similar key appearance does not establish interchangeability.
