HL-5391 Adjustable Roller-Lever Limit Switch

Name: CHNANMA Limit Switch
SKU: SH-01060024
Price: 7.63 USD
Availability: InStock

A mechanical limit switch with an adjustable metal lever and large roller for position detection and travel control. The metal housing provides a removable cover and accessible screw-terminal connections.

Product Views

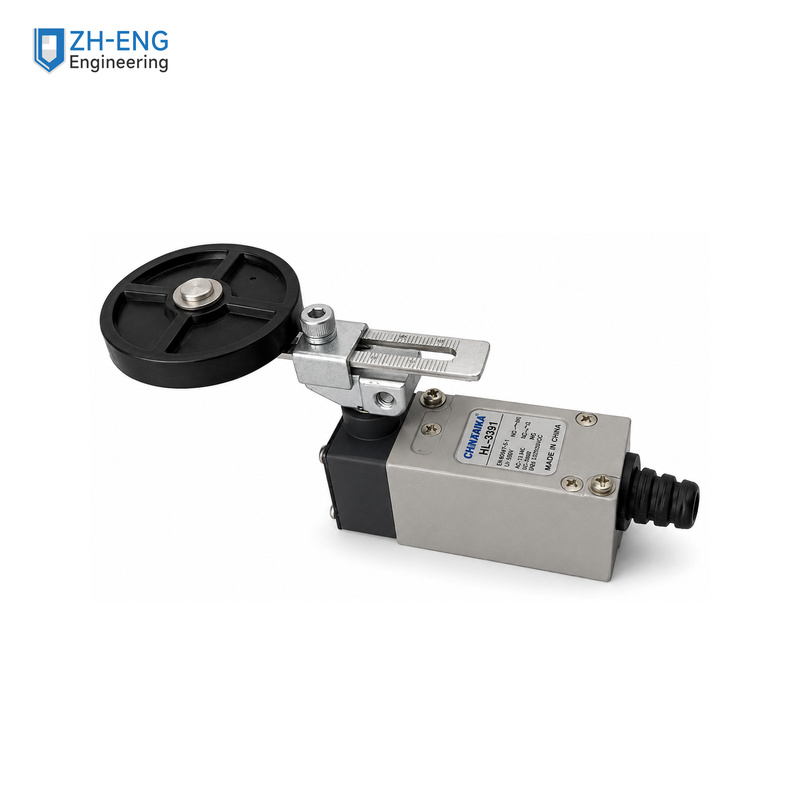

Angled view of the large-roller assembly

Horizontal view of the large-roller assembly

HL series open housing and removable cover

HL series exploded assembly illustration

Outline Dimensions

Dimensions in mm. Roller: diameter 50 mm, thickness 6.2 mm. Adjustable arm length: 35-70 mm, 1 mm pitch. Two diameter 5.2 mm through holes. Rod fastening: M4 plate screw; mounting: M6 hexagonal-hole screws. Cover screws: 2 x M3; head-cover screws: 4 x M3. Preserve clearance for roller travel and cable entry.

Product Information

Item	Specification
Model	HL-5391
Product type	Adjustable roller-lever mechanical limit switch
Contact arrangement	1 NO + 1 NC, self-resetting
Actuator	Adjustable metal lever with large roller
Housing	Metal enclosure with removable cover
Degree of protection	IP65
Operating speed	5 mm/s to 0.5 m/s
Rated frequency	50/60 Hz

HL-5391 Operating Characteristics

Operating-characteristic values apply at a lever length of 31.5 mm.

Characteristic	Value
Operating force, OF (maximum)	7.35 N
Release force, RF (minimum)	0.98 N
Pre-travel, PT (maximum)	20 degrees
Over-travel, OT (minimum)	50 degrees
Movement differential, MD (maximum)	12 degrees

Electrical Load Ratings

Current ratings in amperes. NC = normally closed; NO = normally open. Select the rating for the actual voltage and load type.

Rated voltage	Resistive NC / NO	Lamp NC / NO	Inductive NC / NO	Motor NC / NO
125 V AC	5 / 5	1.5 / 0.7	3 / 3	2 / 1
250 V AC	5 / 5	1 / 0.55	3 / 3	1.5 / 0.8
12 V DC	5 / 5	3 / 3	4 / 4	3 / 3
24 V DC	5 / 5	3 / 3	4 / 4	3 / 3
125 V DC	0.4 / 0.2	—	—	—
250 V DC	0.4 / 0.2	—	—	—

Electrical Load Conditions

Condition	Limit / basis
Surge current, NC	24 A or less
Surge current, NO	12 A or less
AC inductive load	Power factor: 0.4 minimum
DC inductive load	Time constant: 7 ms maximum
Lamp-load inrush basis	10 times steady-state current
Motor-load inrush basis	6 times steady-state current

Operating Environment

Characteristic	Value
Mechanical operating frequency	120 operations/minute
Electrical operating frequency	30 operations/minute
Initial contact resistance	25 milliohms maximum
Ambient temperature	-5 to +65 degrees C, without icing
Ambient humidity	35-95% RH
Vibration resistance	10-55 Hz, 1.5 mm double amplitude

Before Ordering

Match the full HL-5391 model, roller dimensions, adjustable lever and mounting arrangement to the installation.
Select contact ratings for the actual AC or DC voltage, load type and NO/NC circuit. Do not apply a resistive rating to a motor load.
Set the lever position and allow sufficient over-travel without using the switch as a mechanical stop.
Confirm the cable entry and sealing arrangement. Isolate power before wiring, adjustment or maintenance.

Frequently Asked Questions

What actuator does the HL-5391 use?

It uses an adjustable metal roller lever with a large roller for mechanical position and travel detection.

What is the contact configuration?

The contact arrangement is one normally open and one normally closed contact (1 NO + 1 NC), with a self-resetting mechanism.

Which current rating should I use?

Use the Electrical Load Ratings table for the actual voltage, load type and contact. Resistive, lamp, inductive and motor loads have different ratings.

How should the lever be set?

Match the lever length and roller position to the operating cam. Allow the required travel and clearance; the operating-characteristic table uses a 31.5 mm lever length.

What should be checked before installation?

Check the mounting dimensions, roller path, cable entry, sealing, electrical load and NO/NC wiring. Installation and maintenance should be performed with the circuit isolated.
