ZR/TR/ZS/TS231 Elevator Limit-switch Family
Four actuator-head forms retained as one manufacturer-corresponding limit-switch family, with only directly stated construction and operating fields.
Product Reference
SH-ZR231 / SH-TR231 / SH-ZS231 / SH-TS231
Specifications
| Parameter | Specification |
|---|---|
| Actuator forms | ZR231 / TR231 / ZS231 / TS231 |
| Case | Glass-fiber-reinforced self-extinguishing thermoplastic plastic |
| Protection level | IP65 |
| Contact material | Pure silver |
| Terminals | M3 screws |
| Insulation | VDE0110, 4 kV / 3 (manufacturer-listed) |
| Working temperature | −30 to +80 °C |
| Rated insulation voltage | Ui 500 VAC, 25–60 Hz |
| Thermal current | Ith 10 A |

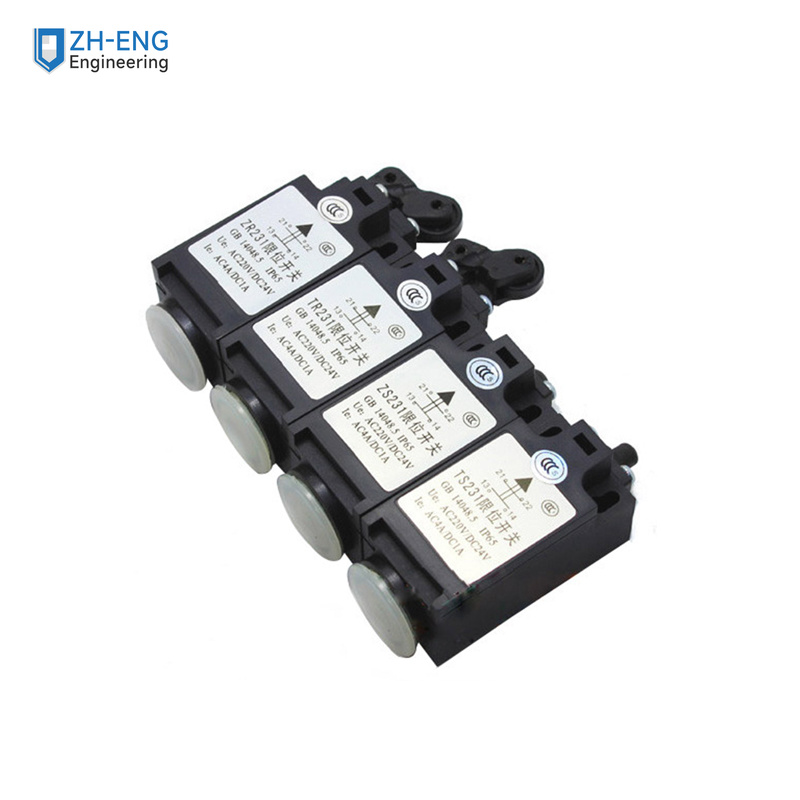

Each actuator form is shown separately; one image is not used to represent every mechanism. Standards, certification icons and lifetime statements on the supplier sheet are not presented as independently available compliance claims.
