KH-9015-PBS

Price
$0.29
/pc
$0.30
Reference price excluding installation & freight,please consult sales for exact quote
Select Model
SH-KH-9015-PBS
📞 Instant Inquiry
ⓦ Send Message
Product Introduction

KH-9015-PBS Microswitch Selection

The KH-9015 series includes plunger and roller-lever actuator selections with a compact switch body and screw terminals. Choose the PBS plunger version for this product selection and match the exact actuator, contact function and circuit rating. The series view illustrates the roller-lever housing form.

Product Views

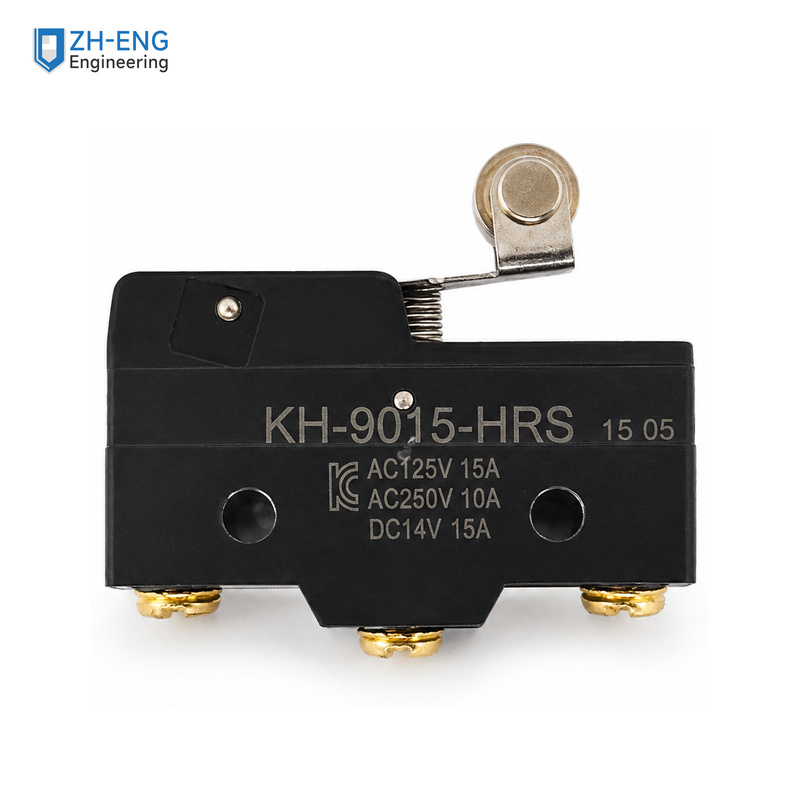

KH-9015 series roller-lever housing example
KH-9015 series roller-lever housing example

Product Information

ItemSpecification
Ordered modelSH-KH-9015-PBS / KH-9015-PBS
PBS actuator selectionShort spring plunger
Contact arrangementSPDT, 1 NO + 1 NC
Maximum resistive-load current selection15 A; confirm the rating at the actual operating voltage
PBS maximum operating force380 gf, approximately 3.73 N
PBS minimum release force110 gf, approximately 1.08 N
PBS maximum pretravel1.0 mm
PBS minimum overtravel1.3 mm
Operating-temperature range−25 °C to +80 °C

Series Actuator Comparison

Model selectionActuator form
KH-9015-PBSShort spring plunger
KH-9015-HRSRoller-lever example

Before Ordering

  • Confirm KH-9015-PBS and the short spring-plunger actuator required for the installation.
  • Match fixing holes, screw-terminal assignment, plunger travel and mechanical clearance.
  • Confirm the actual model's current rating at the required AC/DC voltage; different actuator or electrical versions can have different ratings.

Frequently Asked Questions

Does the roller-lever series view change the ordered model?

Choose the PBS plunger configuration for this product selection. The HRS roller-lever version is a different actuator choice.

Can 15 A be assumed at every voltage?

No. Match current, AC/DC voltage and load type to the complete ordered version rather than using one maximum value universally.

Which mechanical dimensions should be checked?

Confirm the actuator form, mounting-hole positions, terminal arrangement, pretravel and available overtravel.

What should accompany a replacement order?

Specify the full KH-9015 model, actuator, contact function, electrical load and required quantity.
