XZ-9110

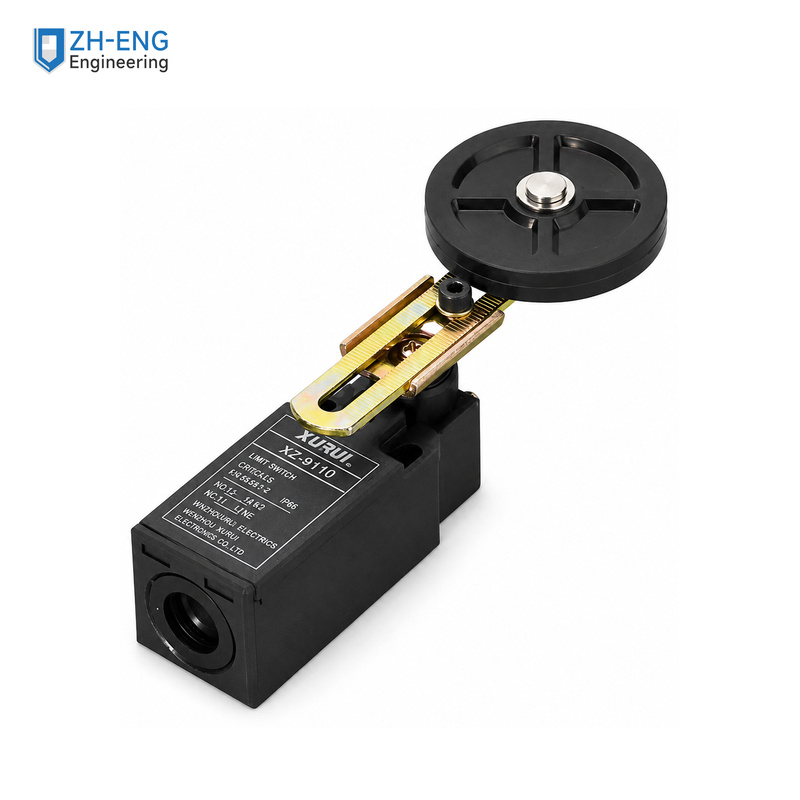

Mechanical limit switch with an adjustable lever and large roller. Compare the actuator arrangement and mounting dimensions with the required installation.
| Parameter | Specification |
|---|---|
| Actuator | Adjustable large-roller lever |
| Roller radius | 25 mm |
| Body width | 30.5 mm |
| Body depth | 30 mm |
Dimensions are in millimetres. Use the front and side views to check the roller clearance, lever position and mounting dimensions.
SH-XZ-9110 is listed as Elevator Limit Switch.
Contact arrangement: 1NO + 1NC; 13-14 NO and 11-12 NC. Rated load: 10(4) A / 250 VAC; 6(2) A / 380 VAC. Operation speed: 5 mm/s to 0.5 m/s.
Confirm the actuator form, contact arrangement, electrical rating, operating travel, reset behaviour and mounting dimensions against the installed component, its nameplate and the approved project document before ordering SH-XZ-9110.
