Weight measuring device

Price

$146.16

/pc

$150.69

Reference price excluding installation & freight,please consult sales for exact quote

Select Model

SH-OMS-560

Product Introduction

OMS-560 Elevator Load Measuring Controller

Name: Weight measuring device
SKU: SH-01090006
Price: 146.16 USD
Availability: InStock

A compact elevator load controller with a four-digit LED display, six operating keys and five relay outputs.

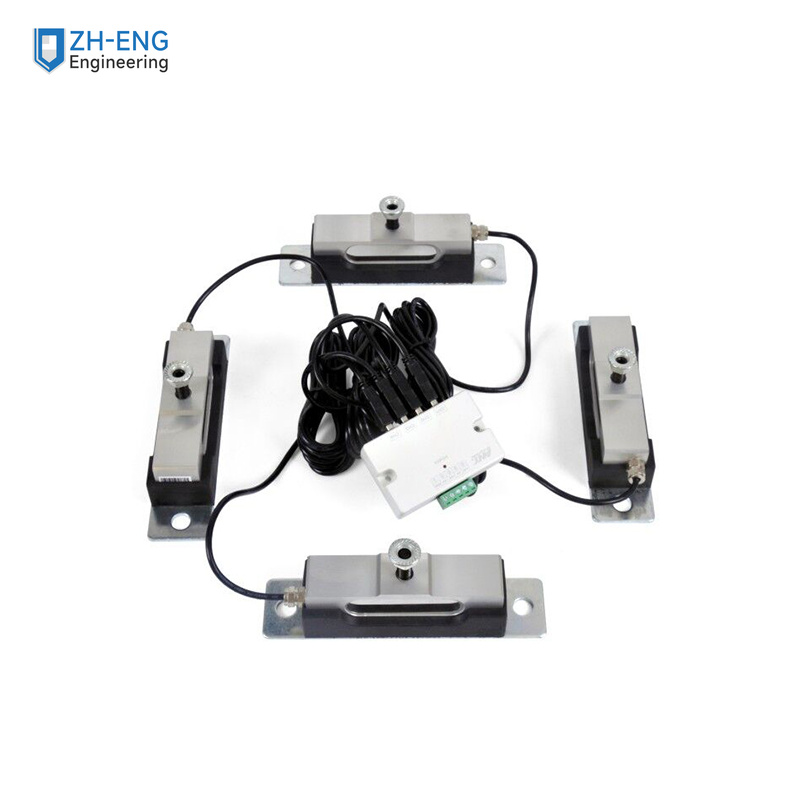

The OMS-560 displays weight or percentage load and provides empty-load, full-load, overload, voice and lighting outputs. Its two sensor channels can be expanded through a junction box.

OMS-560 Elevator Load Measuring Controller — OMS-560 load measuring controller.

Specifications

Parameter	Specification
Supply	16–48 V AC/DC
Power consumption	≤4 W
Sensor channels	2; expandable to 8 with a junction box
Relay outputs	5: empty load, full load, overload, voice and lighting
Contact ratings	8 A / 250 V AC; 5 A / 250 V AC or 5 A / 30 V DC
Display	4-digit, 0.56-inch LED
Display mode	Weight or percentage
Keys	6
Sensor supply	5 V DC
HOLD signal input	10–45 V AC/DC
Operating temperature	−20 to +60 °C
Enclosure	ABS
Dimensions (L × W × H as specified)	90 × 84 × 58 mm
Weight	265 g

Operator interface

OMS-560 display and six-key operating panel — The front panel combines the LED load display with six operating keys.

Installation features

Rail or screw mounting.
Configurable weight or percentage display.
HOLD input for the running state.
Onboard buzzer for alarm indication.

Frequently Asked Questions

What configuration is shown for OMS-560?

The exact product image shows a DIN-rail electronic controller with red numeric display, front buttons and terminal rows. This confirms the visible construction only; it does not establish ratings or hidden interfaces.

What should be confirmed before ordering?

Confirm sensor/controller function, supply, input type, display range, relay/output arrangement and terminal wiring.

Which sensor/controller signals must match?

Confirm supply, sensing input and range, relay or analogue output, terminal assignment and controller interface from the exact label and wiring diagram.
