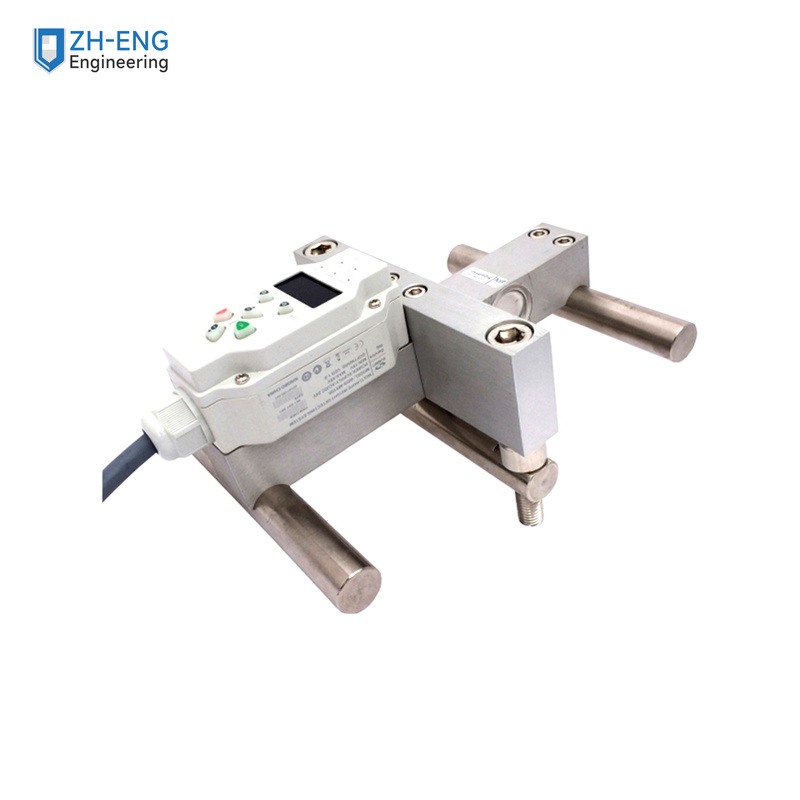

WDS-MR Series Multi-Rope Load Measuring System

Name: Weight measuring device
SKU: SH-01090001
Price: 81.79 USD
Availability: InStock

Multi-rope tension measurement for elevator load monitoring, with a four-digit LED weight display.

The WDS-MR100, WDS-MR200 and WDS-MR300 configurations combine a rope-mounted sensing assembly with local indication and relay alarm outputs.

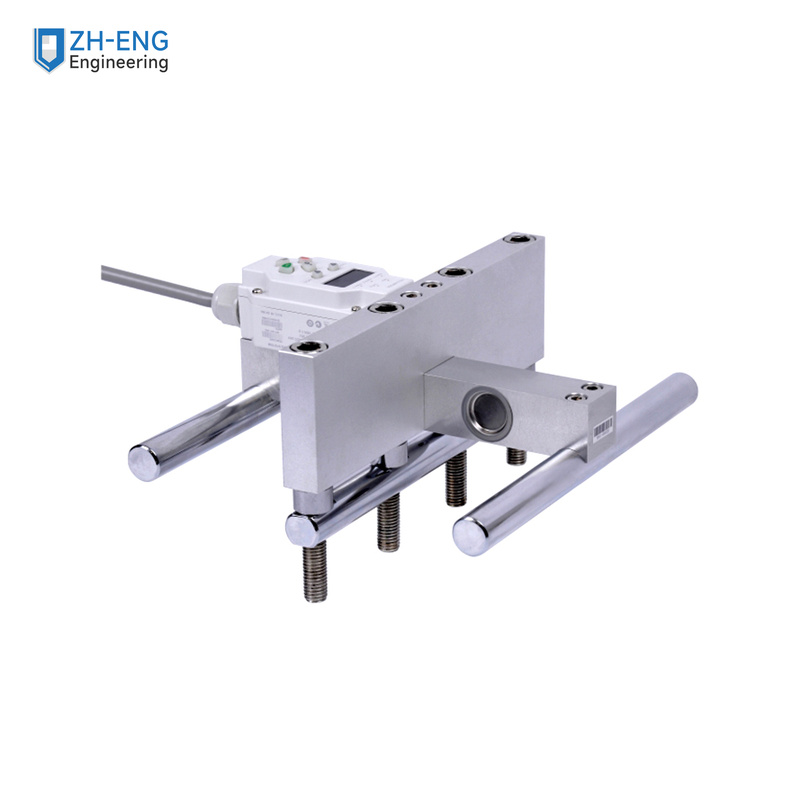

WDS-MR Series Multi-Rope Load Measuring System — WDS-MR product appearance.

Model specifications

Model	Load range	Maximum load	Dimensions (L × W × H)
WDS-MR100	300–2500 kg	≤5000 kg	208 × 158 × 93 mm
WDS-MR200	300–2500 kg	≤5000 kg	208 × 230 × 93 mm
WDS-MR300	1000–4500 kg	≤9000 kg	208 × 306 × 103 mm

Common specifications

Parameter	Specification
Supply	16–48 V AC/DC
AC input frequency	50/60 Hz
Power consumption	≤4 W
Steel-rope diameter	4–16 mm
HOLD input	12–230 V AC/DC
Alarm indication	Audible, visual and electrical
Display	4-digit LED
Relay outputs	2
Contact rating	3 A / 250 V AC; 3 A / 24 V DC
Enclosure	Flame-retardant ABS
Sensor material	Aluminium alloy and iron
Operating temperature	−20 to +60 °C
Ingress protection	IP45
Standard cable length	3 m

Mounting arrangement

Multiple-rope sensor retaining and clamping arrangements — The diagrams show the removable retaining frame, rope positioning and the final clamped arrangement.

Frequently Asked Questions

What does WDS-MR100 measure?

WDS-MR100 belongs to a multi-rope elevator weight-detecting system used to monitor load through the suspension ropes.

Which rope and load configuration should be confirmed?

The supplier family page lists 4–6 mm rope diameter and model-family load ranges, but the exact sensor count and rated load must be confirmed for the supplied WDS-MR100 configuration.

What electrical interfaces should be checked?

Confirm the controller supply, alarm-relay wiring, hold input and any analogue-output option against the installed controller and project drawing before ordering.
