3SE3 100-1E Roller-Lever Limit Switch
Mechanical position switch with a roller-lever actuator for elevator limit and position-detection applications.
Product Model and Features
3SE3 100-1E
- Roller-lever mechanical actuator
- M20 × 1.5 cable entry marked on the housing
- IP67 protection marking on the exact product label

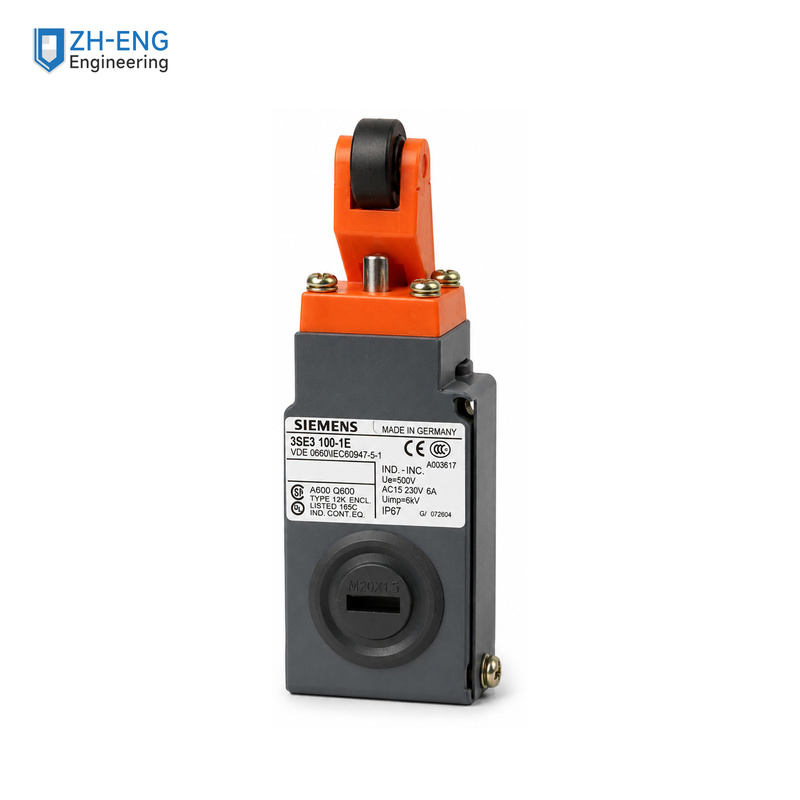

Product View
Product Information and Specifications
| Product type | Mechanical roller-lever limit switch |
|---|---|
| Commercial model | 3SE3 100-1E |
| Manufacturer marking | Siemens |
| Rated insulation voltage marking | Ui 500 V |
| Utilization-category marking | AC-15, 230 V, 6 A |
| Cable entry | M20 × 1.5 |
| Protection marking | IP67 |
Before You Buy
Match the complete 3SE3 100-1E model, roller-lever actuator, cable-entry size and contact requirements to the installed switch. Use the wiring diagram and label on the supplied unit during installation.
Frequently Asked Questions
Which actuator is fitted to 3SE3 100-1E?
The exact product image shows a roller-lever mechanical actuator.
What cable entry is marked on the housing?
The housing is marked M20 × 1.5.
Which electrical and protection markings are visible?
The label shows Ui 500 V, AC-15 at 230 V and 6 A, and IP67.
