Traction Machine
Traction MachineTraction MachineTraction Machine

Traction Machine

1600KG 1.5M/S 2:1 15.7KW

السعر
$3399.70
/وحدة
$3504.85
سعر مرجعي لا يشمل التركيب والشحن، يرجى استشارة فريق المبيعات للحصول على عرض سعر دقيق
اختر الموديل
SH-GETM6.0H-150/1600
📞 استفسار فوري
ⓦ أرسل لنا رسالة
مقدمة المنتج
Traction Machine Series

SH-GETM6.0H-100/1600

SH-GETM6.0H-100/1600 traction machine series with 20 verified configurations.

Product overview

Product View

One clean product view is shown for this series. Configurations sharing the same appearance are listed in the specification table below.

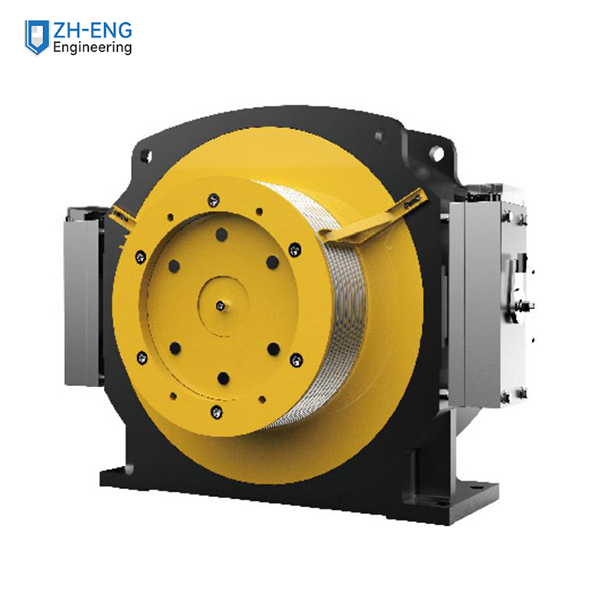

SH-GETM6.0H-100/1600 traction machine on a pure white background
SH-GETM6.0H-100/1600 traction machine.
Series configurations

Specifications

The main configuration and linked child configurations are consolidated in one table.

ConfigurationRated loadRated speedRopingRated powerSource status
SH-GETM6.0H-100/16001600 kg1.0 m/s2:110.5 kWVerified configuration
SH-GETM6.0H-150/16001600 kg1.5 m/s2:115.7 kWVerified configuration
SH-GETM6.0H-160/16001600 kg1.6 m/s2:116.7 kWVerified configuration
SH-GETM6.0H-175/16001600 kg1.75 m/s2:118.3 kWVerified configuration
SH-GETM6.0H-200/16001600 kg2.0 m/s2:120.9 kWVerified configuration
SH-GETM6.0H-050/20002000 kg0.5 m/s2:16.5 kWVerified configuration
SH-GETM6.0H-063/20002000 kg0.63 m/s2:18.2 kWVerified configuration
SH-GETM6.0H-100/20002000 kg1.0 m/s2:18.2 kWVerified configuration
SH-GETM6.0H-175/20002000 kg1.75 m/s2:122.9 kWVerified configuration
SH-GETM6.0H-100/11501150 kg1.0 m/s2:17.5 kWVerified configuration
SH-GETM6.0H-175/11501150 kg1.75 m/s2:17.5 kWVerified configuration
SH-GETM6.0H-200/11501150 kg2.0 m/s2:17.5 kWVerified configuration
SH-GETM6.0H-100/12501250 kg1.0 m/s2:18.2 kWVerified configuration
SH-GETM6.0H-175/12501250 kg1.75 m/s2:114.3 kWVerified configuration
SH-GETM6.0H-200/12501250 kg2.0 m/s2:116.3 kWVerified configuration
SH-GETM6.0H-250/12501250 kg2.5 m/s2:120.4 kWVerified configuration
SH-GETM6.0H-100/13501350 kg1.0 m/s2:18.8 kWVerified configuration
SH-GETM6.0H-175/13501350 kg1.75 m/s2:115.4 kWVerified configuration
SH-GETM6.0H-200/13501350 kg2.0 m/s2:117.6 kWVerified configuration
SH-GETM6.0H-250/13501350 kg2.5 m/s2:122.1 kWVerified configuration
Technical information

Technical Drawing and Dimensions

The dimensional drawing has been separated from the original reference sheet and rebuilt as a standalone technical image.

SH-GETM6.0H-100/1600 dimensional drawing
Series dimensional and installation reference.
ConfigurationRated loadRated speedDimensional applicability
SH-GETM6.0H-100/16001600 kg1.0 m/sSeries dimensional drawing shown above
SH-GETM6.0H-150/16001600 kg1.5 m/sSeries dimensional drawing shown above
SH-GETM6.0H-160/16001600 kg1.6 m/sSeries dimensional drawing shown above
SH-GETM6.0H-175/16001600 kg1.75 m/sSeries dimensional drawing shown above
SH-GETM6.0H-200/16001600 kg2.0 m/sSeries dimensional drawing shown above
SH-GETM6.0H-050/20002000 kg0.5 m/sSeries dimensional drawing shown above
SH-GETM6.0H-063/20002000 kg0.63 m/sSeries dimensional drawing shown above
SH-GETM6.0H-100/20002000 kg1.0 m/sSeries dimensional drawing shown above
SH-GETM6.0H-175/20002000 kg1.75 m/sSeries dimensional drawing shown above
SH-GETM6.0H-100/11501150 kg1.0 m/sSeries dimensional drawing shown above
SH-GETM6.0H-175/11501150 kg1.75 m/sSeries dimensional drawing shown above
SH-GETM6.0H-200/11501150 kg2.0 m/sSeries dimensional drawing shown above
SH-GETM6.0H-100/12501250 kg1.0 m/sSeries dimensional drawing shown above
SH-GETM6.0H-175/12501250 kg1.75 m/sSeries dimensional drawing shown above
SH-GETM6.0H-200/12501250 kg2.0 m/sSeries dimensional drawing shown above
SH-GETM6.0H-250/12501250 kg2.5 m/sSeries dimensional drawing shown above
SH-GETM6.0H-100/13501350 kg1.0 m/sSeries dimensional drawing shown above
SH-GETM6.0H-175/13501350 kg1.75 m/sSeries dimensional drawing shown above
SH-GETM6.0H-200/13501350 kg2.0 m/sSeries dimensional drawing shown above
SH-GETM6.0H-250/13501350 kg2.5 m/sSeries dimensional drawing shown above
All listed configurations are included. Where the source provides one shared series drawing, that drawing applies to each configuration listed above. No unverified numeric dimensions have been added.
Series information

Technical Range

Rated load range1150–2000 kg
Rated speed range0.5–2.5 m/s
Roping2:1
Rated power range6.5–22.9 kW
Final selection and installation dimensions must follow the confirmed configuration drawing.

Frequently Asked Questions

What duty point is listed for GETM6.0H-100/1600?

The cited GETM6.0H table lists this 2:1 configuration for 1600 kg at 1.0 m/s.

Which mechanical details must match?

Confirm the exact suffix, sheave diameter and grooves, rope arrangement, mounting dimensions and brake configuration.

Can another GETM6.0H configuration be used without checking?

No. The series includes multiple load and speed configurations; select from the nameplate and approved project data.
