Elevator control cabinet

5.5KW

السعر

$0.29

/وحدة

$0.30

سعر مرجعي لا يشمل التركيب والشحن، يرجى استشارة فريق المبيعات للحصول على عرض سعر دقيق

اختر الموديل

SH-SJT-WVF5-S/E 55

SH-SJT-WVF5-S/E 75

مقدمة المنتج

SJT-WVF5-S/E Elevator Control Cabinet

Name: Elevator control cabinet
SKU: SH-01270010
Price: 0.29 USD
Availability: InStock

An integrated elevator control cabinet for compatible geared and permanent-magnet gearless traction systems.

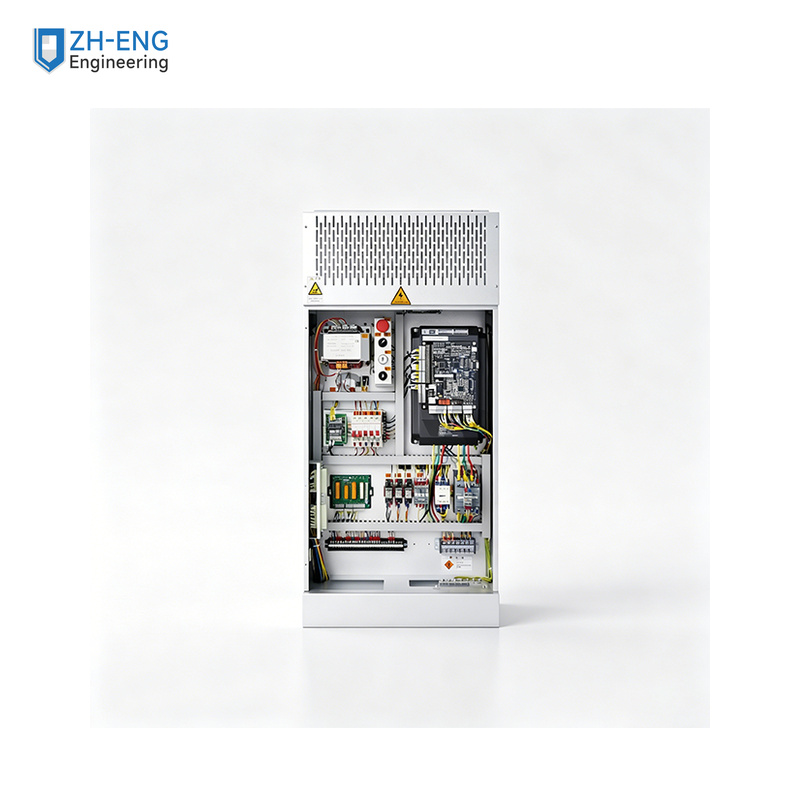

SJT-WVF5-S/E Elevator Control Cabinet — Product view.

Product specifications

Parameter	Specification
Input supply	Three-phase 380–415 V AC, 50/60 Hz
Control architecture	Integrated elevator drive and control
Communication	CAN-BUS
Motor types	Geared asynchronous or PM gearless traction motor
Encoder interfaces	SIN/COS, UVW and compatible ERN1387 feedback

Available configurations

Motor power	Output current	Input supply
5.5 kW	Approximately 13–14 A	380–415 V AC
7.5 kW	Approximately 17–18.5 A	380–415 V AC

Product functions

Combines elevator motion control and motor-drive functions.
Supports parameter adjustment through the local operator.
Supports compatible car-top and car-panel devices over CAN-BUS.

Frequently Asked Questions

What configuration is shown for SJT-WVF5-S/E 55?

Model SJT-WVF5-S/E 55 is shown as an open SJT-WVF5 control cabinet with drive, terminals, wiring and protective components. Match the complete model, physical layout and documented interfaces to the installed component before ordering.

Which cabinet interfaces determine fit?

Check enclosure dimensions, mounting, cable entries, terminal layout, ventilation and internal component arrangement against the approved cabinet drawing.

Which control-system configuration must match?

Confirm supply, drive and motor rating, I/O and communication interfaces, safety-circuit terminals and controller generation from the exact schematic and labels.
