SH-NICE900-400W
Product code SH-01200019. The model and specifications below are matched to the current independent-store record and the newly supplied product material.

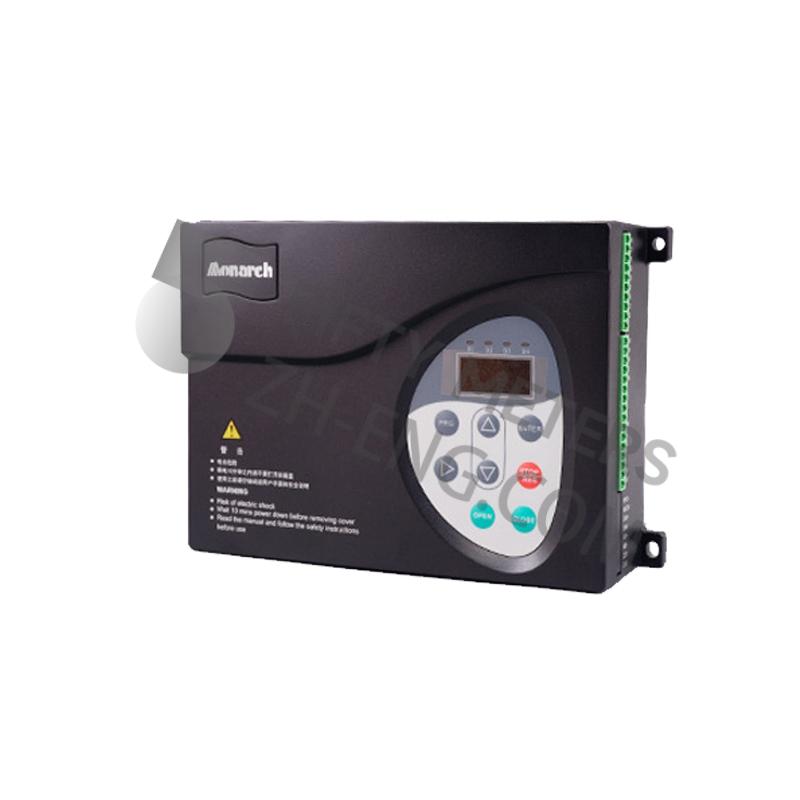

Product views
Specifications and functions
| Reference model | NICE-D-A-SOP4 |
|---|---|
| Motor power | 400 W (0.4 kW) |
| Rated input | Single-phase AC 220–240 V; stated operating range 187–264 V |
| Rated input current | 5.4 A |
| Continuous output current | 2.3 A |
| Power capacity | 1.0 kVA |
| Maximum output frequency | 0.00–99.00 Hz |
| Application | Integrated elevator-door controller for synchronous or asynchronous door motors |
Selection and installation
Confirm the exact model, power/voltage class, connector arrangement and system generation before ordering. Installation and commissioning must be performed by qualified elevator personnel using the applicable system documentation.
