SH-EI53C9.25-2048-SA5N2T
Product code SH-01150027. The model and specifications below are matched to the current independent-store record and the newly supplied product material.

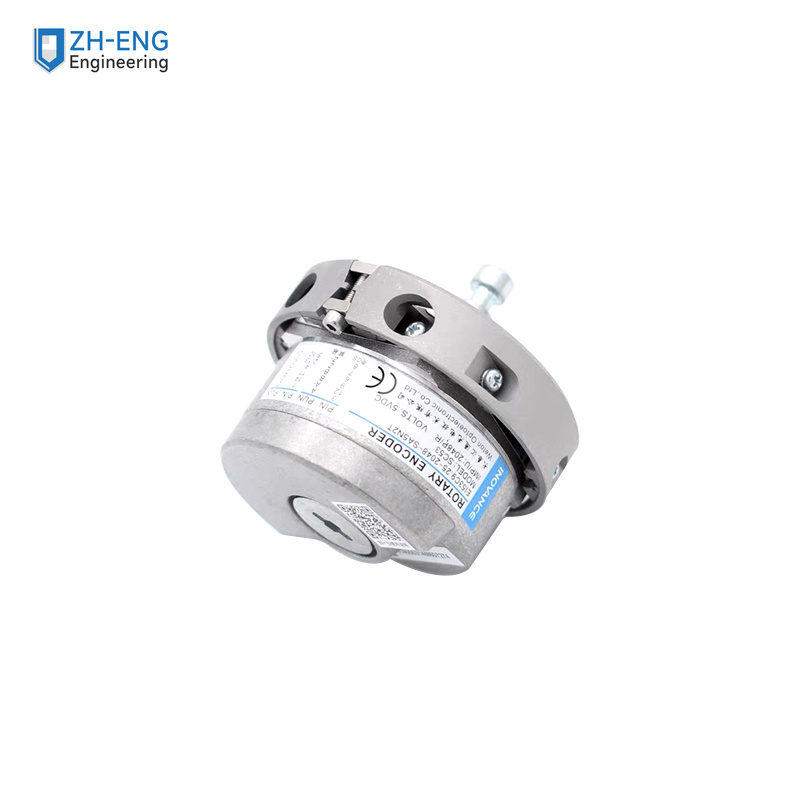

Product views
Specifications and functions
| Product | Elevator rotary encoder |
|---|---|
| Exact model | EI53C9.25-2048-SA5N2T |
| Resolution | 2048 PPR |
| Supply | 5 V DC +/-5% |
| Signal | 1 Vpp +/-0.1 V; frequency response up to 50 kHz |
| Speed reference | Up to 2000 rpm |
| Mechanical reference | 53 x 63 mm catalogue reference; 9.25 mm tapered-shaft family |
| Selection | Confirm the exact label, connector pinout and mechanical fit before energizing |
Selection and installation
Confirm the exact model, power/voltage class, connector arrangement and system generation before ordering. Installation and commissioning must be performed by qualified elevator personnel using the applicable system documentation.
