SA-32 Standalone Card and PIN Access Controller

Name: IC Access Control
SKU: SH-08030131
Price: 139.82 USD
Availability: InStock

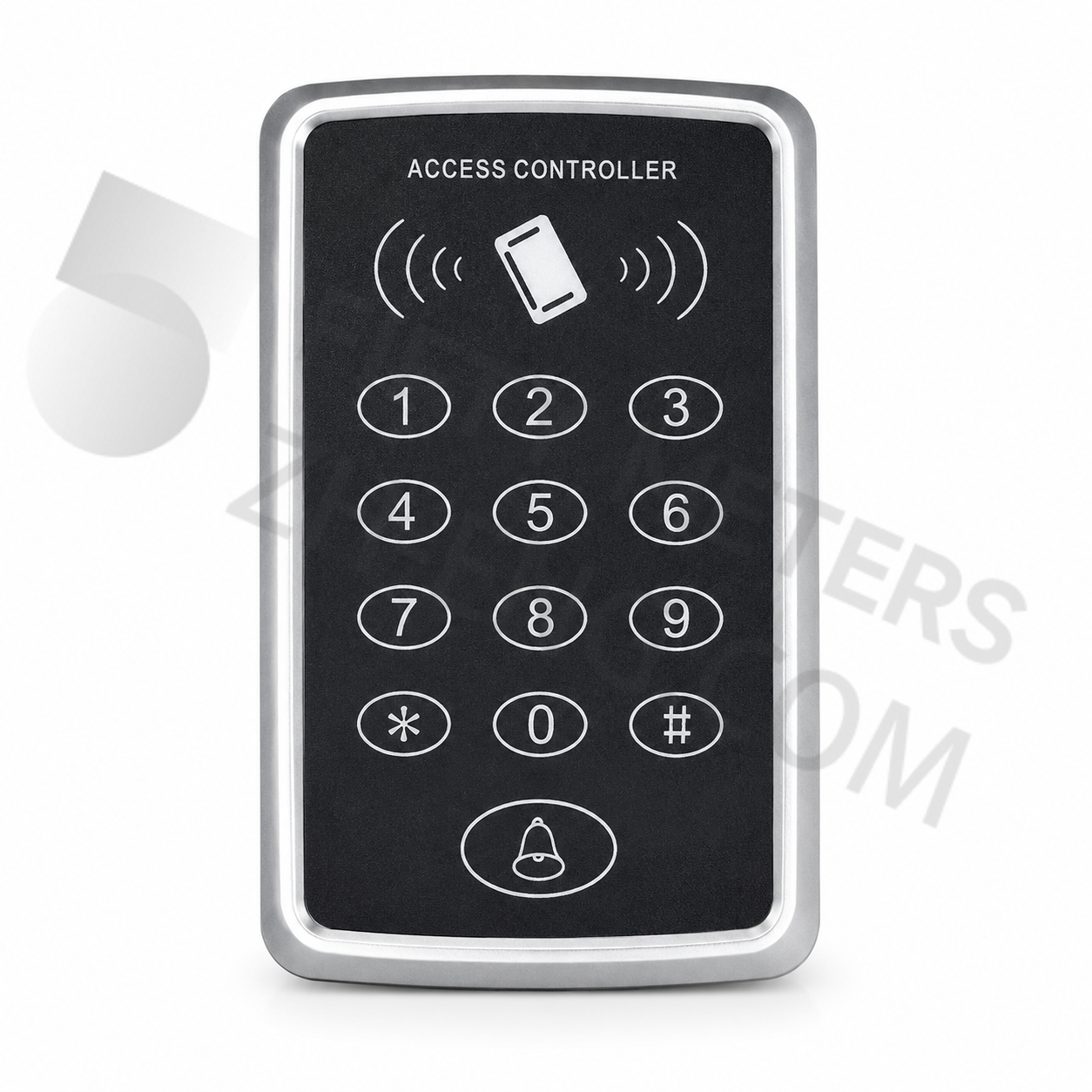

A standalone access-control unit with a touch keypad, contactless-card reading area and silver rectangular housing. Card, PIN and combined card-plus-PIN modes support matched access-management arrangements. A separate bell control is provided for connection to an external doorbell.

Product Views

Rear mounting arrangement and connection harnesses

Outline Dimensions

Dimensions in mm. Illustrated housing: 120 x 78 x 20 mm. Other housing revisions include 121 x 78 x 23 mm and 120 x 78 x 22 mm; confirm the required revision and mounting dimensions before ordering.

Product Information

Item	Specification
Model family	SA-32
User capacity	1,000 standard users
Authentication modes	Card, PIN, or card plus PIN
Supply voltage	DC 12 V +/-10%
Operating current	Less than 100 mA
Reading distance	1-15 cm, depending on card and environment
Lock-control output	1 relay output; default release time 5 seconds
Additional output	1 low-level PUSH output for matched control equipment
Inputs	Exit-button input and doorbell input
Doorbell function	Requires an external doorbell
Approximate product mass	110 g
Operating temperature	0-60 C
Operating humidity	20-80% RH

Card-System Variant Selection

Variant	Card technology
SA32-E	125 kHz EM (ID) proximity cards, such as EM4100-family cards
SA32-M	13.56 MHz Mifare (IC) cards

Before Ordering

Select the exact SA32-E or SA32-M card technology and match the cards, lock-control equipment and DC supply.
Confirm the housing revision and installation dimensions; the illustrated outline and other housing revisions differ in thickness and overall height.
Confirm relay/PUSH wiring, exit-button and external-doorbell requirements, harnesses and delivery scope. Configure secure credentials during commissioning; do not use the access controller to bypass elevator safety circuits.
