A sliding guide-shoe assembly with a metal mounting body and a wear-resistant channel liner. The main selection is intended for a 16 mm T-section guide rail and elevator speeds up to 2.5 m/s. Match the liner, mounting base and fixing arrangement to the installation.

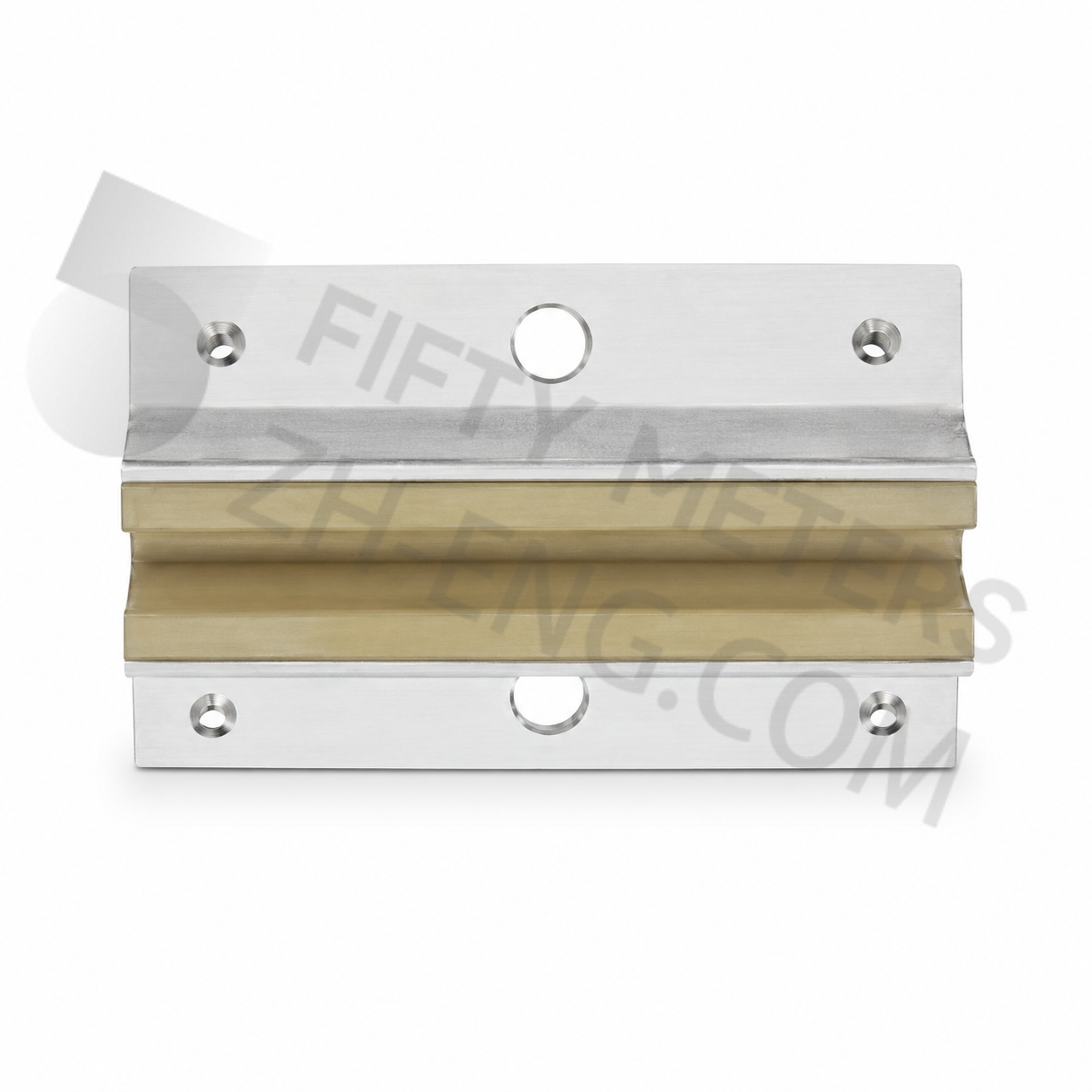

Dimensions in mm. The series outline shows 140, 90 and 33, with additional dimension labels 70, 62, 35.5 and 9. BFK denotes the channel-width reference. Match the selected base, liner and fixing version; the product photograph and series drawing illustrate configuration variations.
| Item | Specification |
|---|---|
| Model / series | SGS-HDX16 / HDX16 |
| Product type | Elevator sliding guide shoe |
| Main guide-rail selection | 16 mm T-section guide rail |
| Rated elevator-speed range | Up to 2.5 m/s |
| Mounting form | Upper and lower mounting flanges with fixing holes |
| Guiding surface | Replaceable channel-style wear liner |
| Item | Configuration information |
|---|---|
| Body material options | Die-cast aluminium alloy or stainless-steel body, according to ordered version |
| Body finish options | Polished or passivated surface, according to body material |
| Liner material options | Polyurethane (PU), nylon or engineering plastic, according to ordered version |
| Guide-rail configuration | Main 16 mm rail selection; other series versions may suit 10 mm rails |
| Fixing arrangement | Match the base-hole pattern and the car/counterweight bracket installation |
The main SGS-HDX16 selection is intended for a 16 mm T-section elevator guide rail. Match the actual liner channel and installation.
The selection is intended for rated elevator speeds up to 2.5 m/s, with the complete guide arrangement selected for the installation.
No. Body and liner material options vary by ordered version. Match the metal body, wear liner and rail configuration together.
Confirm rail thickness, liner channel, rated speed, base dimensions, fixing-hole pattern and required quantity.
