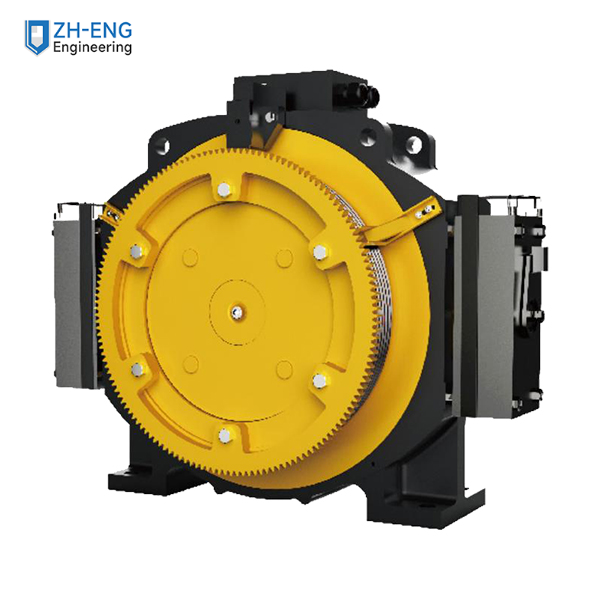

A permanent-magnet gearless traction machine family for elevator installations. Select the rated load, speed, roping and motor configuration to match the project.
| Item | Specification |
|---|---|
| Main model | GETM3.0H-100/0630 |
| Rated load | 630 kg |
| Elevator speed | 1.0 m/s |
| Roping | 2:1 |
| Motor power | 4.1 kW |
| Rated motor voltage | 340 V |
| Rated current | 10.7 A |
| Rated speed | 95.5 r/min |
| Rated torque | 412 N·m |
| Sheave diameter | 400 mm |
| Working duty | S5-60% ED |
| Motor weight | 308 kg |
Compare load, speed and motor configuration before ordering.
| Model | Load / speed / roping / motor power |
|---|---|
| SH-GETM3.0H-100/0630 | 630KG 1.0M/S 2:1 4.1KW |
| SH-GETM3.0G-100/0800 | 800KG 1.0M/S 2:1 4.8KW |
| SH-GETM3.0H-200/1000 | 1000KG 2.0M/S 2:1 12.3KW |
| SH-GETM3.0H-200/0630 | 630KG 2.0M/S 2:1 10.7KW |
| SH-GETM3.0H-160/1000 | 1000KG 1.6M/S 2:1 11.7KW |
| SH-GETM3.0H-160/0800 | 800KG 1.6M/S 2:1 9.0KW |
| SH-GETM3.0H-160/0630 | 630KG 1.6M/S 2:1 7.2KW |
| SH-GETM3.0H-175/1000 | 1000KG 1.75M/S 2:1 11.7KW |
| SH-GETM3.0H-150/1000 | 1000KG 1.5M/S 2:1 10KW |
| SH-GETM3.0H-100/1000 | 1000 kg / 1.0 m/s / 2:1 |
| SH-GETM3.0H-175/0800 | 800KG 1.75M/S 2:1 9.0KW |
| SH-GETM3.0H-150/0800 | 800KG 1.5M/S 2:1 7.8KW |
| SH-GETM3.0H-100/0800 | 800KG 1.0M/S 2:1 5KW |
| SH-GETM3.0H-175/0630 | 630KG 1.75M/S 2:1 7.2KW |
| SH-GETM3.0H-150/0630 | 630KG 1.5M/S 2:1 6.2KW |
Dimensions in mm. Select hand-wind or hand-wind-less configuration for the installation.
| Dimension | Value |
|---|---|
| A / B / C | 330 / 488 / 284 |
| Sheave diameter / E | 400 / 546 |
| W / H | 815 / 624 |
| Mounting holes | 4 × Ø23 |
| J / K / M / N / P / Q | 60.5 / 18.5 / 185.5 / 140 / 75 / 25 |
| L - hand-wind / hand-wind-less | 290 / 262 |
GETM3.0H-100/0630 is a 630 kg, 1.0 m/s, 2:1 machine with a 4.1 kW motor.
No. Load, speed, motor power and mounting configurations vary. Select the complete project configuration.
The 630 kg configuration uses a 400 mm sheave; confirm rope and groove configuration for the project.
Hand-wind and hand-wind-less configurations are available. Confirm the selected mounting dimensions and project requirements.
