ZH-ENG | Traction machine
SH-TMYJ125
Geared traction machine configurations for 400–630 kg rated loads.
Product Image and Specifications
| Configuration | Load (kg) | Speed (m/s) | Roping | Power (kW) |
|---|---|---|---|---|
| SH-TMYJ125 — 400 kg / 0.63 m/s | 400 | 0.63 | 1:1 | 3.5 |
| SH-TMYJ125 — 450 kg / 0.65 m/s | 450 | 0.65 | 1:1 | 3.5 |
| SH-TMYJ125 — 450 kg / 1.00 m/s | 450 | 1.00 | 1:1 | 4.0 |
| SH-TMYJ125 — 500 kg / 1.00 m/s | 500 | 1.00 | 1:1 | 5.5 |
| SH-TMYJ125 — 630 kg / 1.00 m/s | 630 | 1.00 | 1:1 | 6.4 |
| SH-TMYJ125 — 400 kg / 1.00 m/s | 400 | 1.00 | 1:1 | 4.0 |
Technical Drawings and Dimensions
Dimension values are shown for each available configuration where confirmed.
| Configuration | Overall length | Overall height | Overall width | Base length | Mounting pattern | Mounting holes |
|---|---|---|---|---|---|---|
| SH-TMYJ125 — 400 kg / 0.63 m/s | 914.5 | 643.5 | 450 | 310 | 240 × 110 | 4 × Ø24 |
| SH-TMYJ125 — 450 kg / 0.65 m/s | 914.5 | 643.5 | 450 | 310 | 240 × 110 | 4 × Ø24 |
| SH-TMYJ125 — 450 kg / 1.00 m/s | 914.5 | 643.5 | 450 | 310 | 240 × 110 | 4 × Ø24 |
| SH-TMYJ125 — 500 kg / 1.00 m/s | 914.5 | 643.5 | 450 | 310 | 240 × 110 | 4 × Ø24 |
| SH-TMYJ125 — 630 kg / 1.00 m/s | 914.5 | 643.5 | 450 | 310 | 240 × 110 | 4 × Ø24 |
| SH-TMYJ125 — 400 kg / 1.00 m/s | 914.5 | 643.5 | 450 | 310 | 240 × 110 | 4 × Ø24 |
Series Technical Information
Rated-load range400–630 kg across the listed configurations.
Car-speed range0.63–1.00 m/s across the listed configurations.
Roping1:1 for all listed configurations.
Only confirmed configuration and dimensional data are shown; unverified electrical and sheave values are intentionally omitted.
Frequently Asked Questions
What configuration is shown for TMYJ125-40-35?

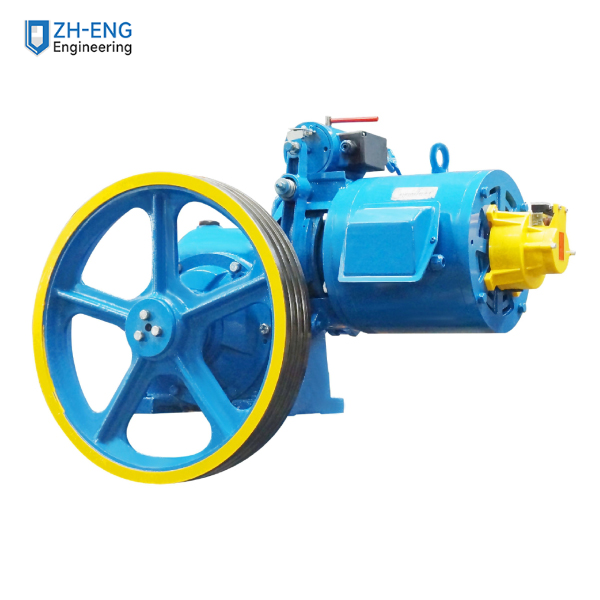

The exact product image shows a TMYJ125-40-35 geared traction machine with large blue handwheel, motor and gearbox. This confirms visible construction only; ratings and hidden functions require source documentation.
Which mechanical interfaces determine machine fit?
Check mounting footprint, shaft and sheave position, rope interface, brake arrangement and approved machine drawing.
Which traction-machine ratings require exact confirmation?
Confirm rated load and speed, motor voltage/current, rope and sheave data, brake configuration and duty from the exact nameplate and project schedule.
