D-180B Dual-Output Switching Power Supply

A 180 W enclosed switching power supply with 5 V and 24 V DC output rails.

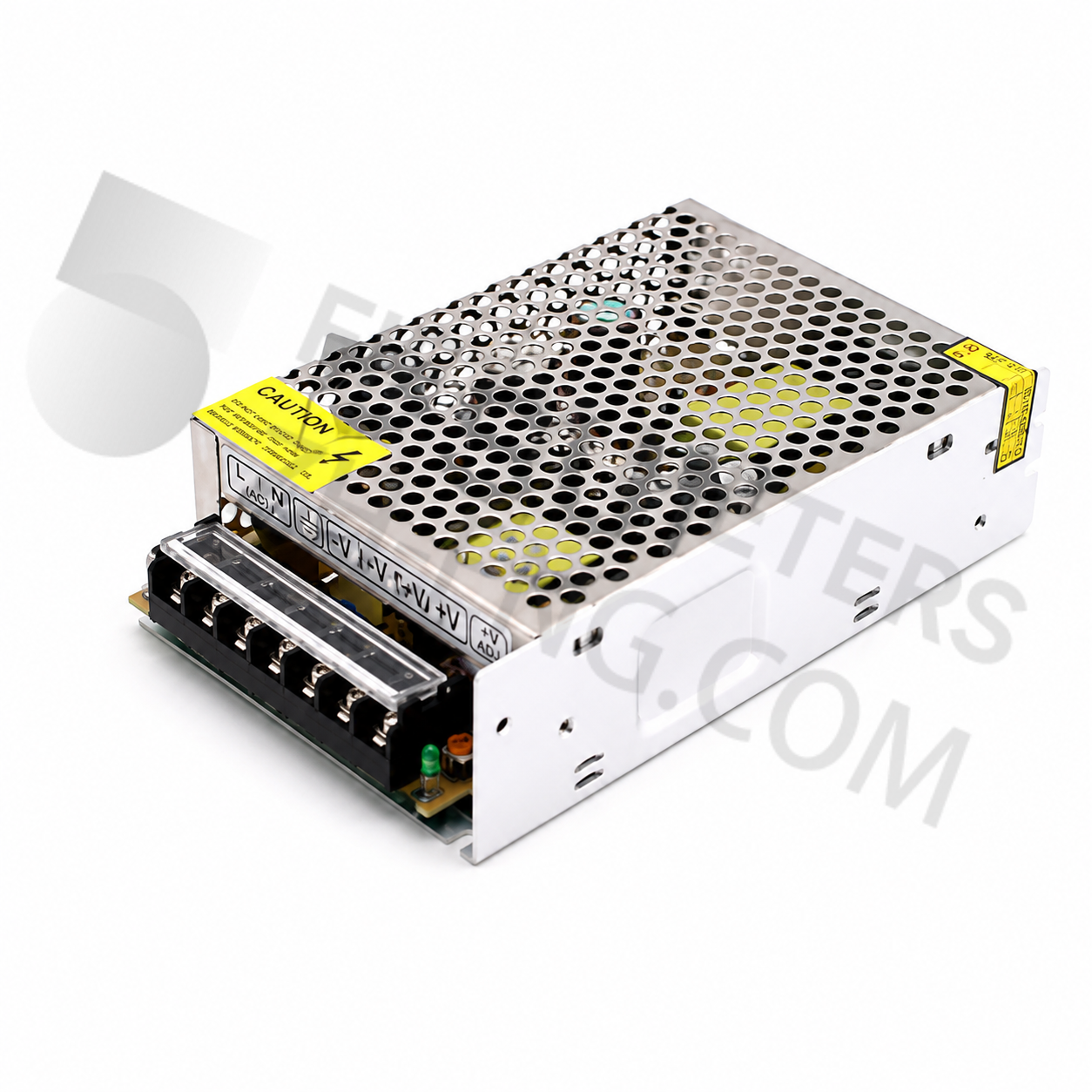

D-180 dual-output power supply, enclosure and terminal view.

Product specifications

Parameter	Specification
Model configuration	D-180B
AC input	100–240 V AC, 50/60 Hz
Output 1	5 V DC, 12 A
Output 2	24 V DC, 3.5 A
Total rated power	180 W
Operating temperature	−10 to +60 °C
Operating humidity	20–90% RH
Dimensions	199 × 110 × 50 mm

Functions and applications

Dual DC outputs support separate low-voltage control circuits.
Perforated metal enclosure allows convection cooling.
Screw-terminal connections provide input and output wiring access.

Installation and selection

Observe the total output-power limit when loading both DC rails.
Match the selected 5 V / 24 V configuration and terminal markings before connection.

Additional source-provided technical information

D-180 series dual-output switching power supply; total rated power 180 W.
Input: AC 100-240 V, 50/60 Hz (also stated as DC 140-340 V input range).
Dimensions: approximately 199 × 110 × 50 mm; reference weight approximately 0.64 kg.
Supplied output combinations include 5 V / 12 V, 5 V / 24 V and 12 V / 24 V; verify the A/B/C model label before connection.

Frequently Asked Questions

What configuration is shown for D-180?

The exact product image shows a ventilated metal enclosed power supply with screw terminals and marked dimensions. This confirms the visible construction only; it does not establish ratings or hidden interfaces.

What should be confirmed before ordering?

Confirm output voltage/current, input range, terminal assignment, enclosure dimensions and required protection or derating.

Which power-supply ratings require exact confirmation?

Confirm input range, regulated output voltage and current, terminal assignment, protection/derating requirements and mounting dimensions from the exact label and datasheet.
