How should slash-separated operating values be read?
The first value is for 50 Hz and the second is for 60 Hz. Keep the values from the selected voltage row together.
ZH-ENG · Elevator ventilation
SH-EF-ZQF330 Elevator Fan

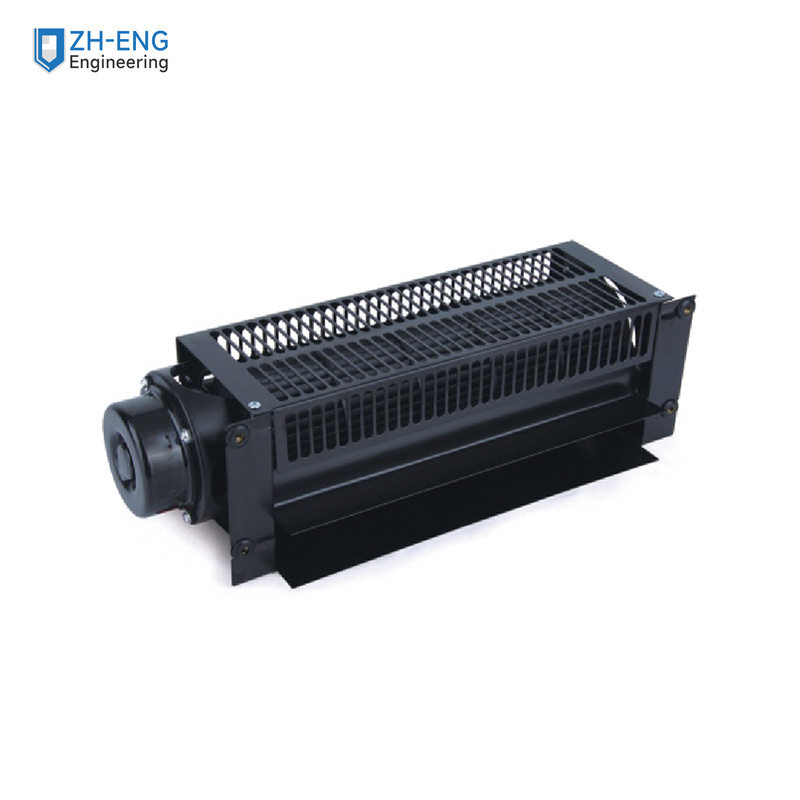

Black steel-housed ZQF330 elevator cross-flow fan with model-specific mounting dimensions and operating rows within the listed 110–230 V range.
SH-EF-ZQF330
Same black housing, left cylindrical motor, grille, outlet and mounting geometry as the labelled ZQF330 manufacturer page.
Specifications
| Parameter | Specification |
|---|---|
| Overall size | 450 × 148 × 135 mm |
| Motor | Capacitor induction |
| Bearing | Ball bearing |
| Impeller | Reinforced plastic |
| Frame | Steel |
| Finish shown | Black plastic-coated |
| Listed mass | 2.7 kg |
| Operating temperature | −20 to +60 °C |
| Mounting holes | 4 × Ø6 mm — see complete drawing |
Operating Data
Slash-separated values follow the 50 Hz / 60 Hz order. Keep every value within the selected voltage row.
| Voltage (VAC) | Frequency (Hz) | Current (A) | Power (W) | Speed (rpm) | Airflow (m³/h) | Noise (dB) |
|---|---|---|---|---|---|---|
| 110 | 50 / 60 | 0.25 / 0.28 | 27 / 30 | 1200 / 1150 | 320 / 300 | 45 |
| 127 | 50 / 60 | 0.22 / 0.25 | 28 / 31 | 1250 / 1250 | 340 / 340 | 46 |
| 220 | 50 / 60 | 0.10 / 0.13 | 22 / 27 | 1250 / 1350 | 340 / 360 | 47 |
| 230 | 50 / 60 | 0.10 / 0.13 | 23 / 28 | 1300 / 1350 | 350 / 360 | 47 |
Dimensions and installation
Selection questions
Can the product photograph be used as a cutting template?
No. Use the complete mounting drawing and verify the selected unit before cutting or drilling.
What information should be specified?
Specify SH-EF-ZQF330, the required voltage and frequency, mounting dimensions and black finish requirement.
Frequently Asked Questions
What type of product is SH-EF-ZQF330?
SH-EF-ZQF330 is listed as Elevator cross-flow ventilation fan.
Which specifications are listed for SH-EF-ZQF330?
Available voltage versions: 110 / 127 / 220 / 230 VAC, 50/60 Hz. Overall size reference: 450 x 148 x 135 mm. Motor / bearing: Capacitor-induction motor / ball bearing.
What should be checked before ordering SH-EF-ZQF330?
Confirm the nameplate voltage and frequency, fan dimensions, mounting points, airflow direction and connector or lead arrangement against the installed component, its nameplate and the approved project document before ordering SH-EF-ZQF330.
