Do the three thickness options use different beam counts?
No. The attached 9, 16 and 35 mm configurations are all 192H variants; select the thickness separately.
ZH-ENG · Elevator door sensing
SH-GM1 192H Elevator Light Curtain System
GM1 H-series elevator door light curtain system with 192 beams and three profile thicknesses grouped under one main link.
Product reference
Model and model option configuration map
| Model | Role | Beam configuration |
|---|---|---|
| SH-GM1-Z/09192H | MAIN | 192 |
| SH-GM1-Z/16192H | model option | 192 |
| SH-GM1-Z/35192H | model option | 192 |
available and isolated fields
| Parameter | Value / status |
|---|---|
| Infrared diode sets | 64 |
| Scanning beams | 192 |
| Emitter/receiver diode spacing | 42 / 55 mm |
| Curtain profile | 1980 mm height × 30 mm width × selected 9 / 16 / 35 mm thickness |
| Detection range | 0–4000 mm |
| Ambient-light immunity | ≥100,000 lux, as listed |
| Installation tolerance | Vertical ≤±20 mm; horizontal ≤±10 mm; angle ≤±7° |
| Working temperature | −25 to +65 °C |
| Protection level | IP53 |
| Buzzer timeout | 25 ± 5 s, as listed |
| Power | ≤7.5 VA |
| Supply | 85–265 VAC, 50/60 Hz |
| Control-box envelope | 212 × 74 × 37 mm; 164 mm body-length callout |
Technical information
Selection questions
Can the 320HG column be applied to these variants?
No. Its 320-beam data is not included because no matching product variant is attached to this main link.
What should be checked before installation?
Confirm profile thickness, 1980 mm profile height, mounting alignment, controller supply and connector arrangement.
Frequently Asked Questions
What configuration is shown for GM1-Z/09192H?

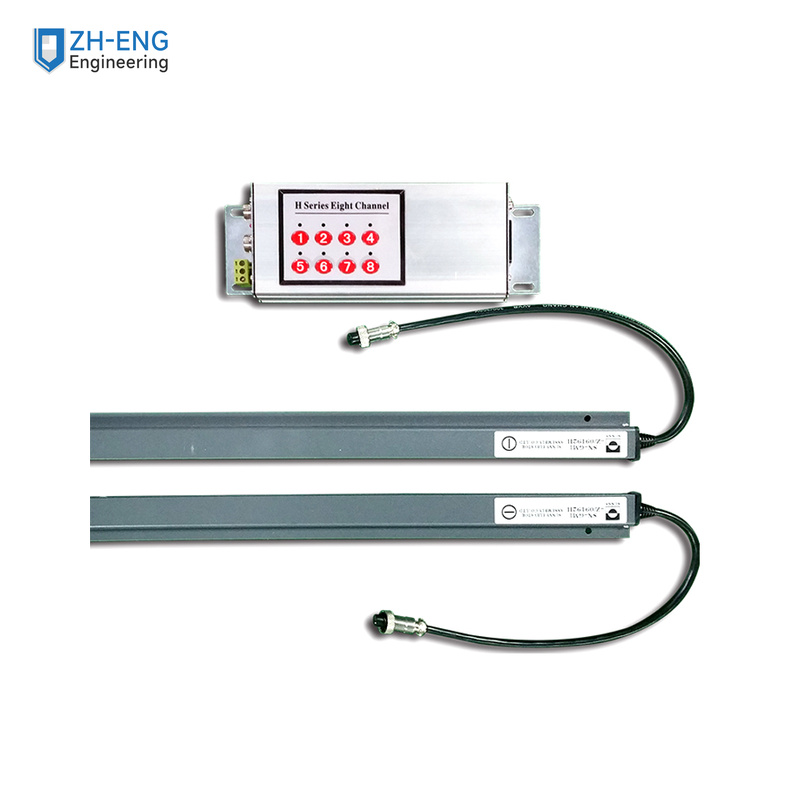

The exact product image shows a GM1-Z/09192J light-curtain set with two profiles, a small interface box and cables. This confirms visible construction only; ratings and hidden functions require source documentation.
Which mechanical details determine light-curtain fit?
Check profile length and section, transmitter/receiver arrangement, mounting brackets, cable exit and connector against the existing doorway.
Which light-curtain interfaces must match?
Confirm supply, beam coverage, transmitter/receiver assignment, output or communication type and controller compatibility from the exact label and documentation; do not infer beam count from the image.
