ZH-ENG | Traction machine
SH-WYT-T 1.5B
Compact gearless traction machine with 1.5 m/s configurations for 630–1000 kg rated loads.

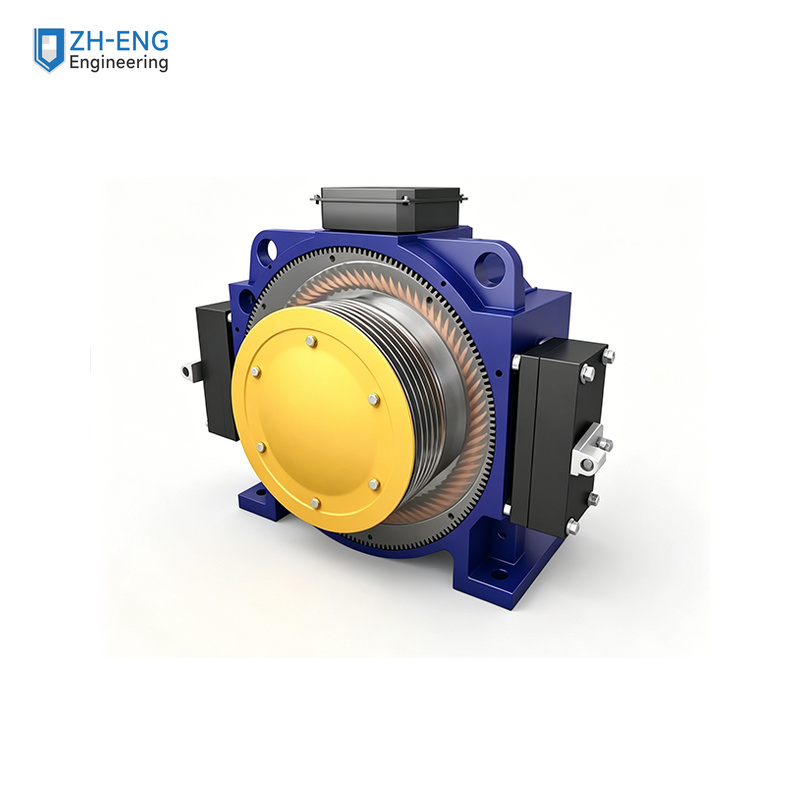

Product Image and Specifications
| Model | Load (kg) | Speed (m/s) | Roping | Sheave (mm) | Ropes | Pitch (mm) | Current (A) | Motor speed (rpm) | Frequency (Hz) | Power (kW) | Torque (N·m) | Shaft load (kg) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SH-WYT-T 1.5B | 630 | 1.5 | 2:1 | Ø400 | 4 × Ø10 | 16 | 16.4 | 144 | 36 | 6.9 | 460 | 2500 | ≈300 |
| SH-WYT-T 1.5C | 800 | 1.5 | 2:1 | Ø400 | 5 × Ø10 | 16 | 19.8 | 144 | 36 | 7.8 | 520 | 3500 | ≈330 |
| SH-WYT-T 1.5D | 1000 | 1.5 | 2:1 | Ø400 | 5 × Ø10 | 16 | 24.8 | 144 | 36 | 10 | 665 | 3500 | ≈330 |
Technical Drawings and Dimensions
Dimension values are shown for each available configuration where confirmed.
| Model | A | B | C | D | E | F | H | H1 | L | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SH-WYT-T 1.5B | 140 | 195 | 47.5 | 29.5 | 337 | 398 | 270 | 605 | 510 | 580 | 800 |
| SH-WYT-T 1.5C | 170 | 225 | 47.5 | 29.5 | 367 | 428 | 270 | 605 | 510 | 580 | 800 |
| SH-WYT-T 1.5D | 170 | 225 | 47.5 | 29.5 | 367 | 428 | 270 | 605 | 510 | 580 | 800 |
Series Technical Information
Traction arrangement2:1 roping with single wrap.
Brake and protectionDisc brake with double coils; IP40; insulation class F.
Encoder and motorSINCOS HEIDENHAIN 1387 encoder; 30 poles.
Brake electrical data and interface details vary by configuration.
