SH-ECN13132048 62S12-78 U8
Product code SH-01150007. The model and specifications below are matched to the current independent-store record and the newly supplied product material.

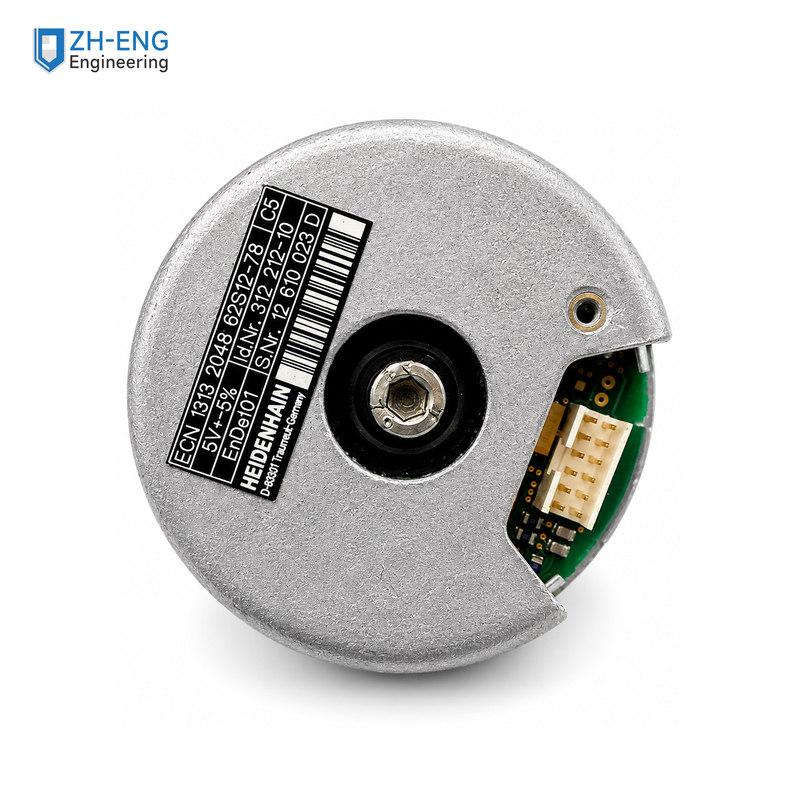

Product views
Specifications and functions
| Product | Absolute elevator rotary encoder |
|---|---|
| Backend model | ECN 1313 2048 62S12-78 U8 |
| Series | HEIDENHAIN ECN 1313 |
| Incremental reference | 2048 lines, approximately 1 Vpp |
| Interface family | EnDat absolute position with incremental signal reference |
| Selection | Confirm the complete supplied nameplate, U8 suffix, connector and pin layout before ordering |
Selection and installation
Confirm the exact model, power/voltage class, connector arrangement and system generation before ordering. Installation and commissioning must be performed by qualified elevator personnel using the applicable system documentation.
