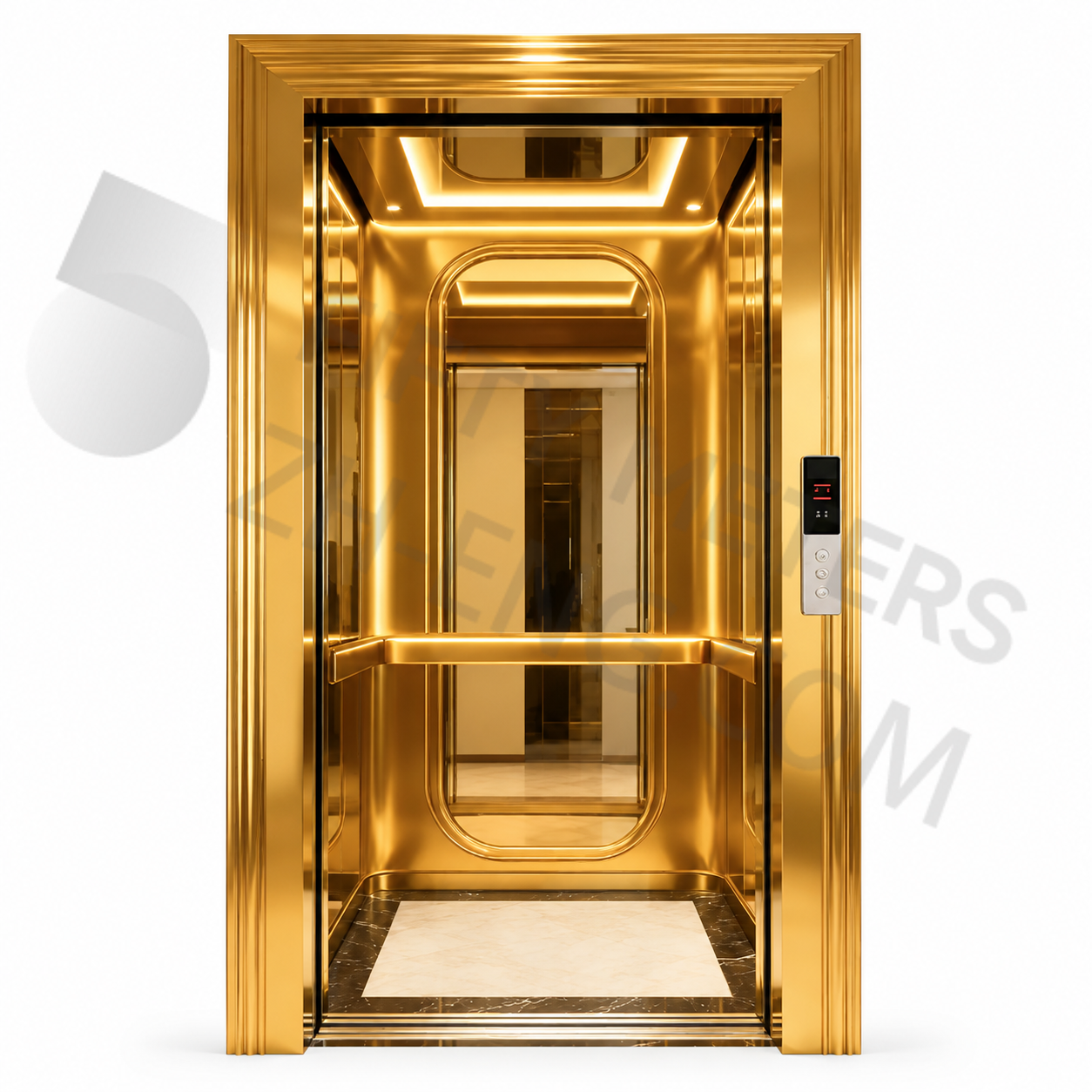

Cabin
|
Roping Rate: 2:1,With MR,Floor:4,CW*CD：1350*950,OP：800*2100,HW*HD:1770*1500,Metal Requirements:golden etching,Cabin:SN-CD-127 630kg pulley for GTW9S, 630kg,1.0m/s,4*10mm with suspension rod 8pcs 10mm,Transom Panel: Transom Panel transom with LCD 6.4inch ,Counter Frame: Counter Frame 2:1, pulley 4*10mm,Motor Base: Motor Base motor base with ibeam for GTW9S, 630KG,1.0m/s,remark:Floor config details: [floor: G; Wide Door Jamb : Wide Jamb OP:600~900(PCS:1) Wide Door Jamb Description : 345mm golden mirror Landing Door : SN-DP-364 OP:600~900(PCS:1) Landing Door Description : GF door golden mirror etching same as car door][ ; Narrow Door Jamb : Narrow Jamb OP:600~900(PCS:1) Narrow Door Jamb Description : Landing Door : SN-DP-364 OP:600~900(PCS:1) Landing Door Description : SUS201 Hairline][ ; Narrow Door Jamb : Narrow Jamb OP:600~900(PCS:1) Narrow Door Jamb Description : undefined Landing Door : SN-DP-364 OP:600~900(PCS:1) Landing Door Description : SUS201 Hairline][ ; Narrow Door Jamb : Narrow Jamb OP:600~900(PCS:1) Narrow Door Jamb Description : Landing Door : SN-DP-364 OP:600~900(PCS:1) Landing Door Description : SUS201 Hairline] |
1.0000 |
![Electric Parts]()
|
Electric Parts
|
Floor:4,Pit Depth:1520,Overhead Height:4200,Control Cabinet:SN-CP-NICE-CE1-7.5KW 7.5KW PCS: 1 ===>,Car Top Inspection:Monarch Car Top Inspection Box Monarch Car Top Inspection Box PCS: 1,Leveling Sensor:SN-GDC-3P Voltage:DC12V-24V;Output mode:PNP PCS: 2,Limit Switch:SN-S3-B1370N Insulation voltage:380V Rated current:AC2A,DC0.3A Rated Voltage:AC220V,DC110V Temperature:-5℃~+40℃ IP class:IP20 Breaking capacity:1000A PCS: 6,remark: |
1.0000 |
|
Elevator COP
|
1-12floor; floor : 4red 24v with_Braille SN-PB313 (pcs: 8); G,1-3; |-|SFTC-CCB-L SN-CCB-LCommand Board MCTC-CCB-A; |
1.0000 |
|
Elevator LOP
|
Up+Down Button; red 24v with_Braille SN-PB313 (pcs: 2); |-|SFTC-HCB-L SN-HCB-L |
2.0000 |
|
Elevator LOP
|
Down Button; red 24v with_Braille SN-PB313 (pcs: 1); |-|SFTC-HCB-L SN-HCB-L |
1.0000 |
|
Elevator LOP
|
Up Button+Button Lock; red 24v with_Braille SN-PB313 (pcs: 1); |-|SFTC-HCB-L SN-HCB-L |
1.0000 |
