SH-MCK200
SH-MCK200 traction machine series with 2 verified configurations.

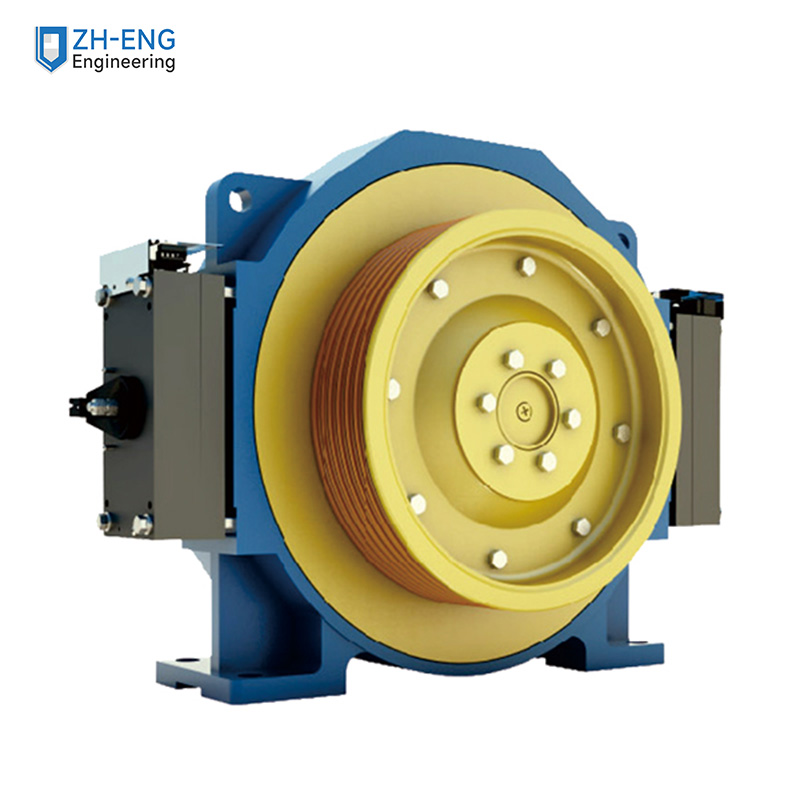

Product View
One clean product view is shown for this series. Configurations sharing the same appearance are listed in the specification table below.
Specifications
The main configuration and linked child configurations are consolidated in one table.
| Configuration | Rated load | Rated speed | Roping | Rated power | Source status |
|---|---|---|---|---|---|
| SH-MCK200 — 800 kg / 2.0 m/s | 800 kg | 2.0 m/s | 2:1 | 10.4 kW | Verified configuration |
| SH-MCK200 — 800 kg / 2.5 m/s | 800 kg | 2.5 m/s | 2:1 | 13 kW | Verified configuration |
Technical Drawing and Dimensions
The dimensional drawing has been separated from the original reference sheet and rebuilt as a standalone technical image.
| Configuration | Rated load | Rated speed | Dimensional applicability |
|---|---|---|---|
| SH-MCK200 — 800 kg / 2.0 m/s | 800 kg | 2.0 m/s | Series dimensional drawing shown above |
| SH-MCK200 — 800 kg / 2.5 m/s | 800 kg | 2.5 m/s | Series dimensional drawing shown above |
Technical Range
Frequently Asked Questions
What is MCK200-20?
MCK200 is identified in a lift type-examination certificate as a permanent-magnet synchronous outer-rotor traction driving machine.
What should be matched before ordering?
Match the complete model and suffix, rated load and speed, suspension ratio, sheave and rope arrangement, brake, encoder, mounting dimensions and electrical interfaces.
Can a visually similar traction machine be used automatically?
No. Machines in the same series can use different mechanical and electrical configurations; select a replacement from the nameplate and approved project data.
