SH-MCTC-CCB-A
Product code SH-01200005. The model and specifications below are matched to the current independent-store record and the newly supplied product material.

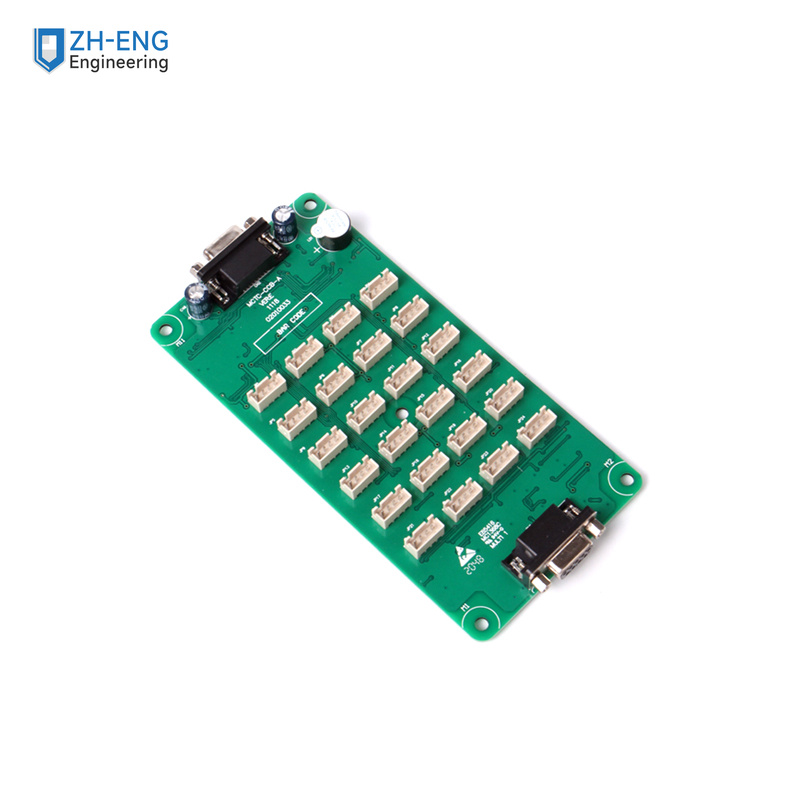

Product views
Specifications and functions
| Product type | MCTC-CCB-A car-call / command expansion board |
|---|---|
| Supply | DC 24 V ±10% |
| Standard capacity | Supports 16 car-call button stations |
| Function | Collects car-call and operating-function inputs and drives indicator/backlight outputs |
| Interface | Designed for Monarch elevator control systems |
Selection and installation
Confirm the exact model, power/voltage class, connector arrangement and system generation before ordering. Installation and commissioning must be performed by qualified elevator personnel using the applicable system documentation.
