SH-CAC-20-1P Portable Elevator Air Conditioner

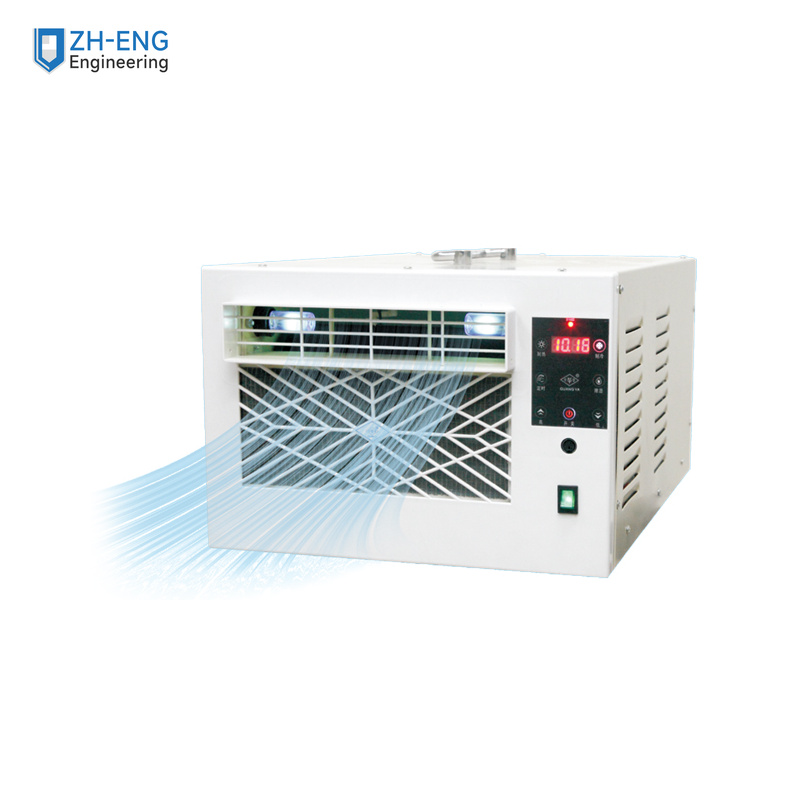

Portable elevator air-conditioning unit with the exact 1P product image, outline dimensions and manufacturer-listed operating data.
Product Reference
SH-CAC-20-1P
Specifications
| Parameter | Specification |
|---|---|
| Voltage | AC 220 V |
| Frequency | 50 Hz |
| manufacturer-listed cooling capacity | 1200 W |
| Heater power | 1000 W |
| Maximum air flow | 380 m³/h |
| Refrigerant | R134a, 180 g |
| Cooling rated power | 400 W |
| Heating rated power | 750 W |
| Noise level | ≤48 dB(A) |
| Cooling current | 2.8 A |
| Heating current | 2.5 A |
| manufacturer-listed temperature | 20–30 °C |
| Overall size | 515 × 325 × 240 mm |
| Weight | 18 kg |
The archived sheet is explicitly labelled 1P. Its data is not applied to the 1.5P model option configuration.
product Configurations
Existing model option configurations are grouped on the main link. A model option row does not inherit images or parameters beyond its own available information.
| Model | Existing configuration | Role |
|---|---|---|
| SH-CAC-20-1P | 1P | MAIN |
| SH-CAC-20-1.5P | 1.5P | model option |
Product and Technical Drawings
Selection Questions
How was the product image selected?
The exact-code high-resolution library file was compared with the model-labelled product appearance on the archived manufacturer page before reuse.
Do the listed values apply to similar-looking products?
No. The values are bound to the named model and manufacturer figure; similar appearance alone is not an acceptable match.
What still needs checking before installation?
Confirm the ordered configuration, installation interface and applicable project requirements against the supplied unit and project documents.
