SH-KS-3/SH-KS-4 Elevator Key Switch
Key-operated switches for elevator control panels. Each model is shown with its own appearance, mounting dimensions and panel-cutout drawing.

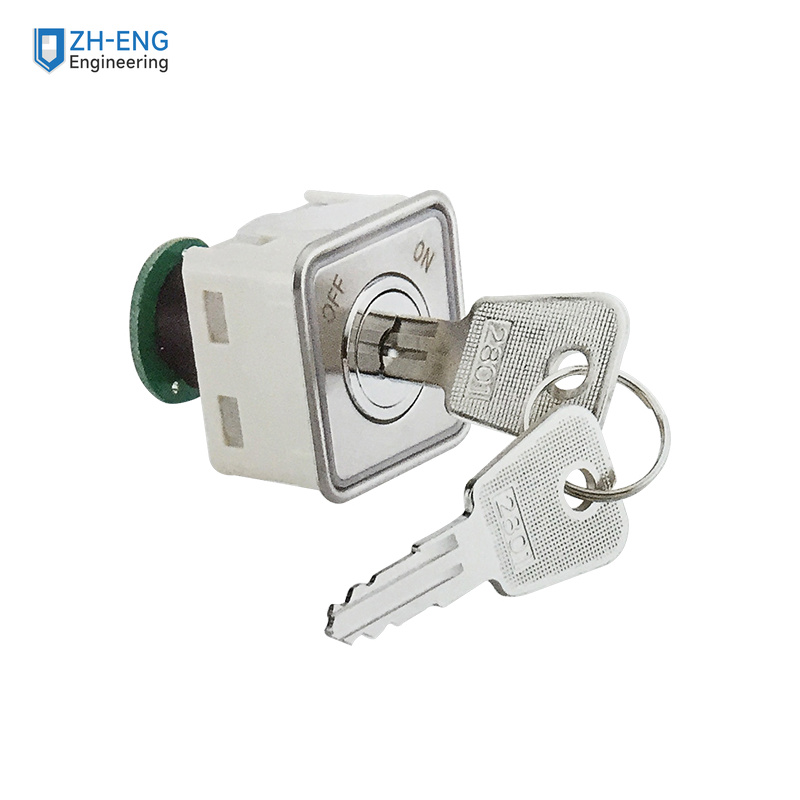

SH-KS-3
Square face. Match the mounting interface and contact arrangement to the selected model.
| Parameter | Specification |
|---|---|
| Appearance | Square face |
| Face dimensions | 36 × 36 mm |
| Recommended panel hole | 33 × 33 mm, R5 corners |
| Body depth callout | 34.3 mm |
| Housing depth callout | 19.3 mm |
| Face labels | OFF / ON |
Dimensions and panel mounting
SH-KS-4
Round face. Match the mounting interface and contact arrangement to the selected model.
| Parameter | Specification |
|---|---|
| Appearance | Round face |
| Outer face diameter | 42 mm |
| Inner circle callout | 33 mm |
| Panel-hole diameter | 37 mm |
| Face labels | OFF / ON |
Dimensions and panel mounting
Selection Questions
How do I select the correct mounting size?
Use the panel-hole and body dimensions for the selected model, then compare them with the existing panel. Different models are not mechanically interchangeable.
Does a matching face shape confirm electrical compatibility?
No. Confirm the contact arrangement and electrical rating of the selected switch before connecting it to the control circuit.
Are matching keys or lock codes guaranteed across models?
No. Specify the required key and lock code when ordering; a similar key appearance does not establish interchangeability.
What is the difference between SH-KS-3 and SH-KS-4?
SH-KS-3 has a 36 × 36 mm square face and a 33 × 33 mm panel cutout with R5 corners. SH-KS-4 has a 42 mm round face and a 37 mm panel-hole diameter.
