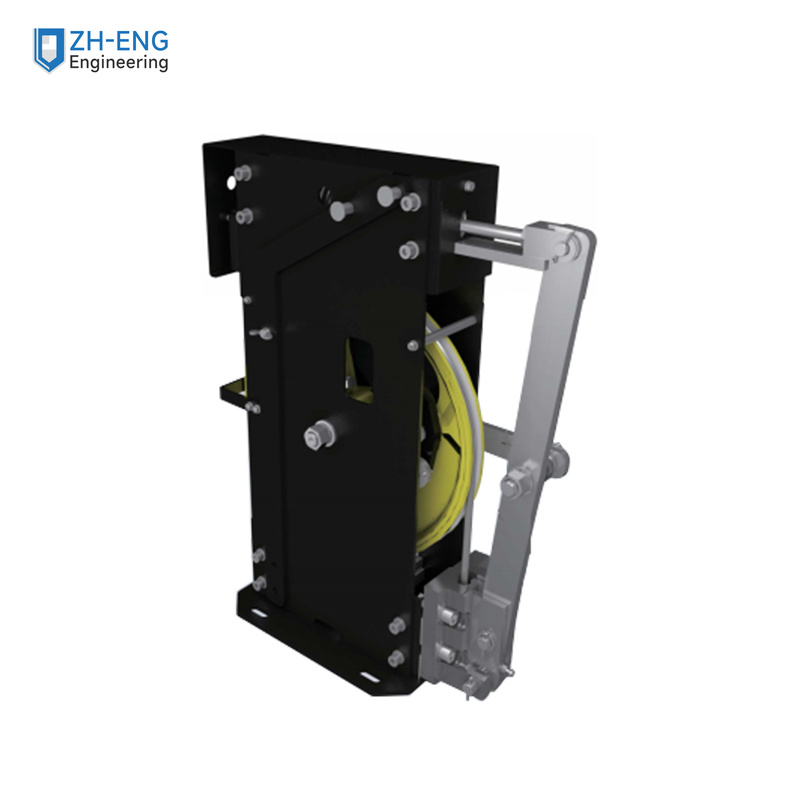

LOG20 Elevator Overspeed Governor
Product and dimensional references for the selected configuration, with the corresponding original drawings retained for inspection.
Product Reference
LOG20
Selected Specifications
| Parameter | Confirmed value |
|---|---|
| Rated speed | 3.0 m/s |
| Sheave diameter | 320 mm |
This supplement covers only the selected 3.0 m/s, 320 mm configuration. Pull force, encoder selection, rope-tension matrix and other speed options are not included from these specifications.
Technical Drawings
All associated views and dimension lines are retained. Select an image to open its unmodified original.
Selection Questions
Which LOG20 configuration is covered?
The selected configuration is 3.0 m/s rated speed with a 320 mm sheave.
Is pull force confirmed?
Confirm the required pulling force and selected configuration before ordering.
Do the other speed choices apply to this record?
The specifications on this page apply only to the listed configuration; check other speeds separately.
