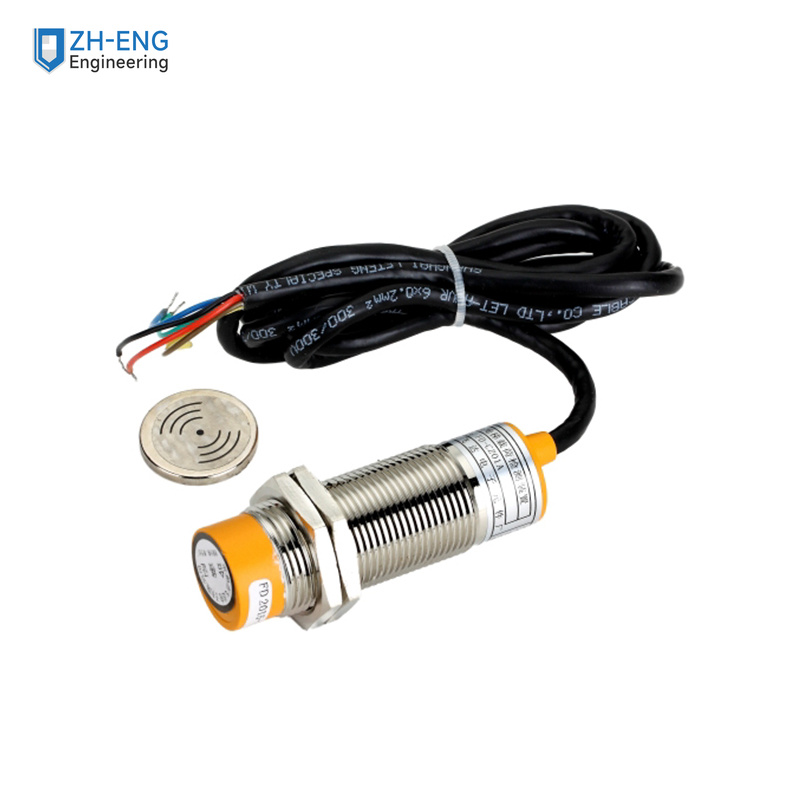

SH-EOM-101 Elevator Load Sensor
Threaded alloy-steel elevator load sensor with the model-specific electrical and load data retained from the archived manufacturer sheet.
Product Reference
SH-EOM-101
Specifications
| Parameter | Specification |
|---|---|
| Rated load | 5000 kg |
| Rated output | 2.0 ± 0.02% mV/V |
| Total error | ±0.5% F.S |
| Repeatability | ±0.1% F.S |
| Creep (30 min) | ±0.05% F.S / 30 min |
| Zero balance | ±1% F.S |
| TC span | ±0.02% F.S / 10 °C |
| Operating temperature | −30 to +70 °C |
| Input resistance | 760 ± 10 Ω |
| Output resistance | 700 ± 2 Ω |
| Insulation impedance | ≥5000 MΩ |
| Safe overload | 150% F.S |
| Ultimate overload | 200% F.S |
| Construction | Alloy steel |
| Protection class | IP67 / IP68 |
| manufacturer-listed reference | GB/T 7551-1997 / OIML R60 |
These parameters are bound to SH-EOM-101 and are not transferred to visually similar cylindrical sensors.
product Configurations
Existing model option configurations are grouped on the main link. A model option row does not inherit images or parameters beyond its own available information.
| Model | Existing configuration | Role |
|---|---|---|
| SH-EOM-101 | Weight measuring device | MAIN |
Product and Technical Drawings
Selection Questions
How was the product image selected?
The exact-code high-resolution library file was compared with the model-labelled product appearance on the archived manufacturer page before reuse.
Do the listed values apply to similar-looking products?
No. The values are bound to the named model and manufacturer figure; similar appearance alone is not an acceptable match.
What still needs checking before installation?
Confirm the ordered configuration, installation interface and applicable project requirements against the supplied unit and project documents.
