Are the 110 V and 220 V options interchangeable?
No. Select the voltage row that matches the site supply; current and power differ even when the housing model is the same.
ZH-ENG · Elevator ventilation
SH-EF-FB9B Elevator Fan
FB9B elevator cross-flow fan grouped under its main product link, with the 110 V and 220 V model option configurations kept as separate operating rows.
SH-EF-FB9B
Specifications
| Parameter | Specification |
|---|---|
| Overall size | 433 × 158 × 130 mm |
| Motor | Capacitor induction |
| Bearing | Ball bearing |
| Impeller | Reinforced plastic |
| Frame | Steel |
| Listed mass | 2.6 kg |
| Operating temperature | −20 to +60 °C |
| Mounting holes | 4 × Ø5 mm — see complete drawing |
Operating Data
Slash-separated values follow the 50 Hz / 60 Hz order. Keep every value within the selected voltage row.
| Voltage (VAC) | Frequency (Hz) | Current (A) | Power (W) | Speed (rpm) | Airflow (m³/h) | Noise (dB) |
|---|---|---|---|---|---|---|
| 110 | 50 / 60 | 0.23 / 0.25 | 24 / 27 | 1250 / 1300 | 260 / 270 | 45 |
| 220 | 50 / 60 | 0.09 / 0.10 | 21 / 24 | 1250 / 1350 | 260 / 280 | 46 |

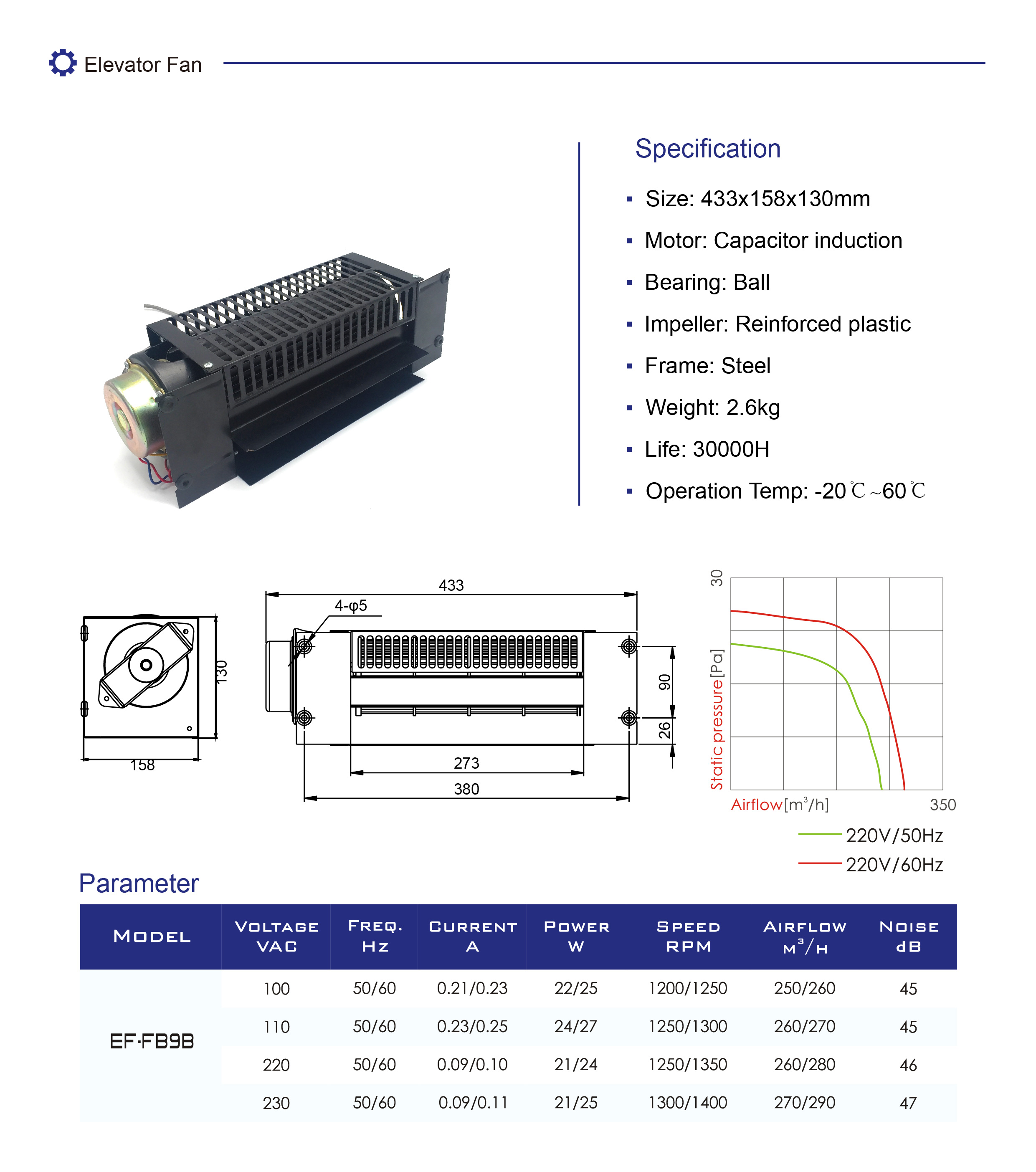

Dimensions and installation
Selection questions
Why is one product photograph used for both model option configurations?
Both model option records use the same FB9B model and their HD-library files are byte-identical. Voltage must still be selected separately.
What should be checked before ordering?
Confirm the FB9B model, 110 V or 220 V supply, frequency and the complete mounting drawing.
Frequently Asked Questions
What type of product is SH-EF-FB9B?
SH-EF-FB9B is listed as Elevator cross-flow ventilation fan.
Which specifications are listed for SH-EF-FB9B?
Model family: FB9B / source notation SN-EF-FB9B. Listed configurations: 220 V 50 Hz; 110 V 50/60 Hz. Motor / bearing: Capacitor-induction motor / ball bearing.
What should be checked before ordering SH-EF-FB9B?
Confirm the nameplate voltage and frequency, fan dimensions, mounting points, airflow direction and connector or lead arrangement against the installed component, its nameplate and the approved project document before ordering SH-EF-FB9B.
