Elevator Wire Rope
6*19S+PPC-6MM. Product imagery, exact supplied construction reference and linked configurations are consolidated under this main product link.
Product Image and Linked Configurations
The table contains only the main record and configurations already linked under this backend product family.
| Model | Specification | Link role |
|---|---|---|
| 6*19S+PPC-6MM | 6MM | Main configuration |

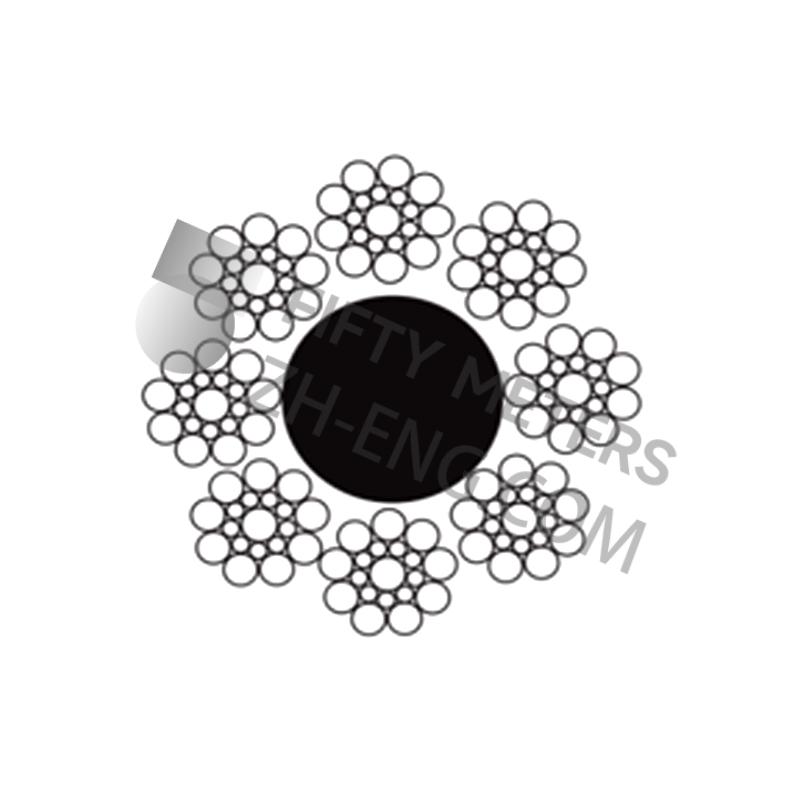

Supplied Construction Reference
The original supplied technical image is enlarged without changing its rope structure.
Wire Rope Anatomy
General component reference identifying the rope, wire, strand and core. This diagram does not replace the configuration-specific construction image above.
Technical Information
The construction image and linked configurations are based on the supplied product materials and backend product grouping. Breaking load, unit mass, rope grade, finish and application must be confirmed for the selected configuration before ordering.
Frequently Asked Questions
What configuration is shown for 6*19S+PPC-6MM?
The exact product image shows a coiled steel wire rope identified in the record as 6x19S plus PPC, 6 mm. This confirms visible construction only; ratings and hidden functions require source documentation.
Which rope construction must match?
Check the record-identified nominal diameter, strand construction, core, lay direction and required length against the approved rope schedule.
Which certified rope data must be confirmed?
Confirm nominal diameter, recorded strand/core construction, lay, minimum breaking load and certificate for the supplied rope; the image alone does not prove these values.
