SH-SG-OX-186A
Product code SH-02050003. The model and specifications below are matched to the current independent-store record and the newly supplied product material.
Product views
Specifications and functions

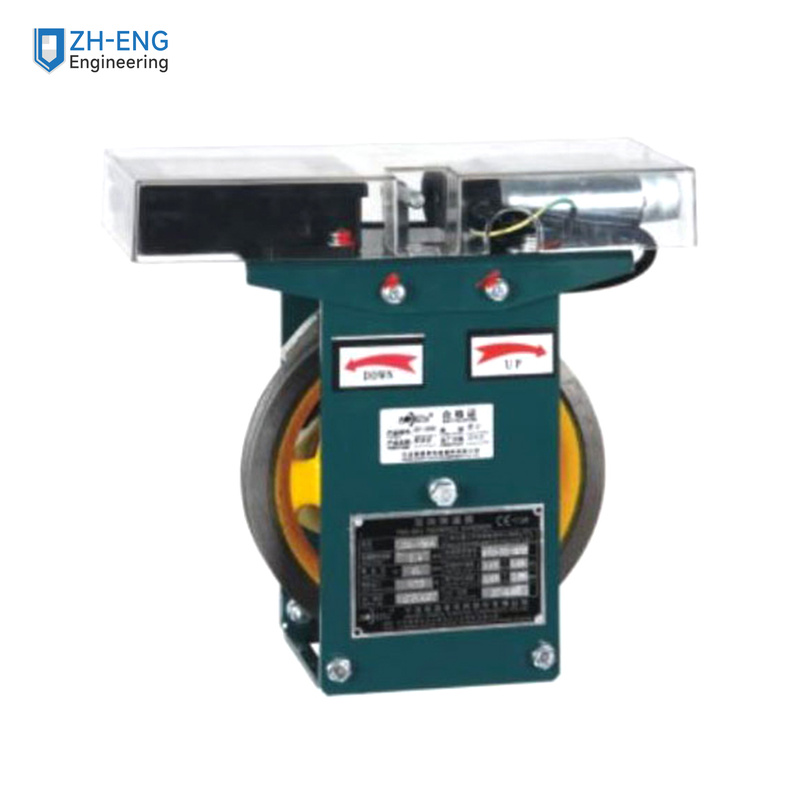

| Product | Home-elevator overspeed governor |
|---|---|
| Exact model | OX-186A |
| Rated speed | Up to 0.4 m/s |
| Sheave diameter | 200 mm |
| Rope diameter | 6 mm |
| Pulling force | At least 500 N |
| Electrical option | AC 220 V standard; DC 24 V optional |
| Matching tension-device references | OX-100A, OX-100B or OX-100C |
Selection and installation
Confirm the exact model, power/voltage class, connector arrangement and system generation before ordering. Installation and commissioning must be performed by qualified elevator personnel using the applicable system documentation.
