Product and Construction Views
The complete legacy marketing sheet is retained as evidence only and is not displayed. The product illustration and construction information below have been separately cleaned and rebuilt for clear product presentation.

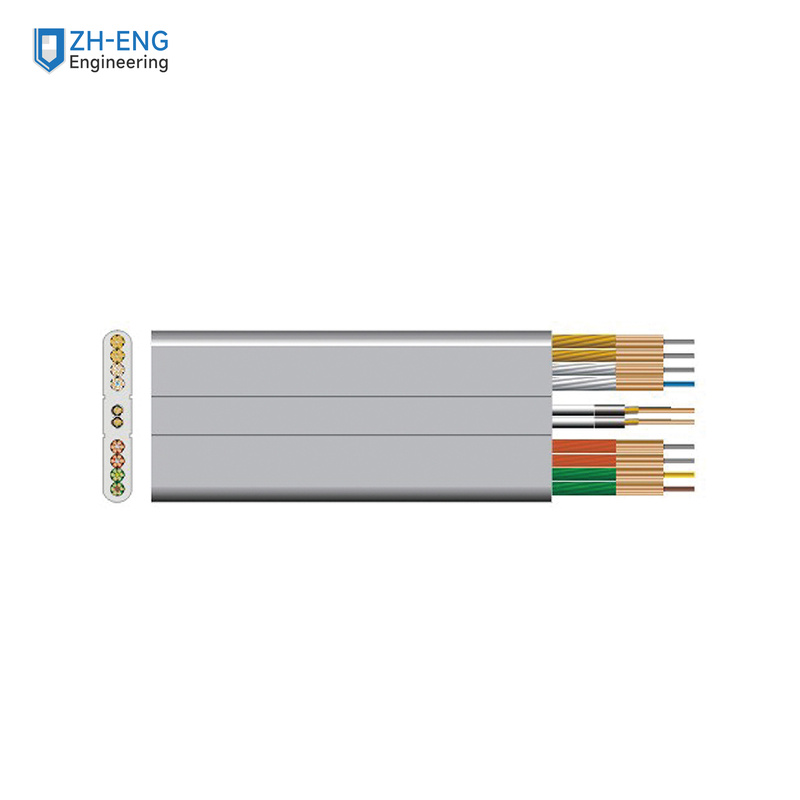

CLEAN PRODUCT VIEW
ENGLISH CONSTRUCTION REFERENCE
Specification Confirmation
| Parameter | Supplier-sheet reference |
|---|
| Main model | TVVBP 24 × 0.75 + 2 × 2P × 0.75 mm² |
| Product type | Flat elevator travelling cable with two shielded pairs |
| Main conductors | 24 × 0.75 mm² |
| Communication circuits | 2 × 2P × 0.75 mm², screened |
| Insulation / sheath | PVC insulation and PVC sheath |
| Rated-voltage reference | AC 300/500 V |
| Rated-temperature reference | 70 °C |
| Overall dimensions | Not stated for the complete 24 + two-pair construction; confirm exact-model datasheet |
| Standard reference | GB 5023.6-1997 / 227 IEC 71 F (TVVB) / 60227 IEC 71 F (TVVB); confirm applicability to the complete supplied construction |
Values are limited to facts explicitly applicable to the displayed target configuration. Current markings, certificates and final production documents should be confirmed before supply.
Selection and Installation Checks
Cable construction
Match the complete conductor, pair, shield and reinforcement configuration to the approved project drawing.
Moving conditions
Confirm travel height, speed, acceleration, moving load, bending radius and operating environment.
Termination
Confirm conductor identification, connector or terminal assignment, shielding continuity and grounding before commissioning.
Frequently Asked Questions
What must be confirmed before ordering?
Confirm the complete model, conductor and pair configuration, overall dimensions, cable length, travel height and speed, bend radius, suspension method, termination and quantity.
Are all supplier-sheet dimensions applicable?
Only dimensions explicitly tied to this target configuration are shown. Rows for other core counts are excluded.
What should be checked during installation?
Verify cable routing, moving length and load, bend radius, suspension hardware, conductor identification, screen grounding where applicable, connectors and commissioning results.
Evidence boundary: The supplied sheet confirms the displayed cable construction, 24 × 0.75 main conductors, two screened pairs, PVC materials, AC 300/500 V and 70 °C references. Its 48.0 × 9.5 mm table row describes the 24-core group, not explicitly the complete cable with two pairs, so that dimension is not presented as the target model's overall size.
