Reviewed Product Views
The views below retain the visible NEMICON product labels and show the housing, hollow-shaft faces, cable and supplied hardware. They are presented as structure references. One image appears to show a different final suffix (30-006-16), while distributor references use 30-006-24 and the backend omits the suffix; therefore the supplied unit's complete nameplate remains the final selection basis.

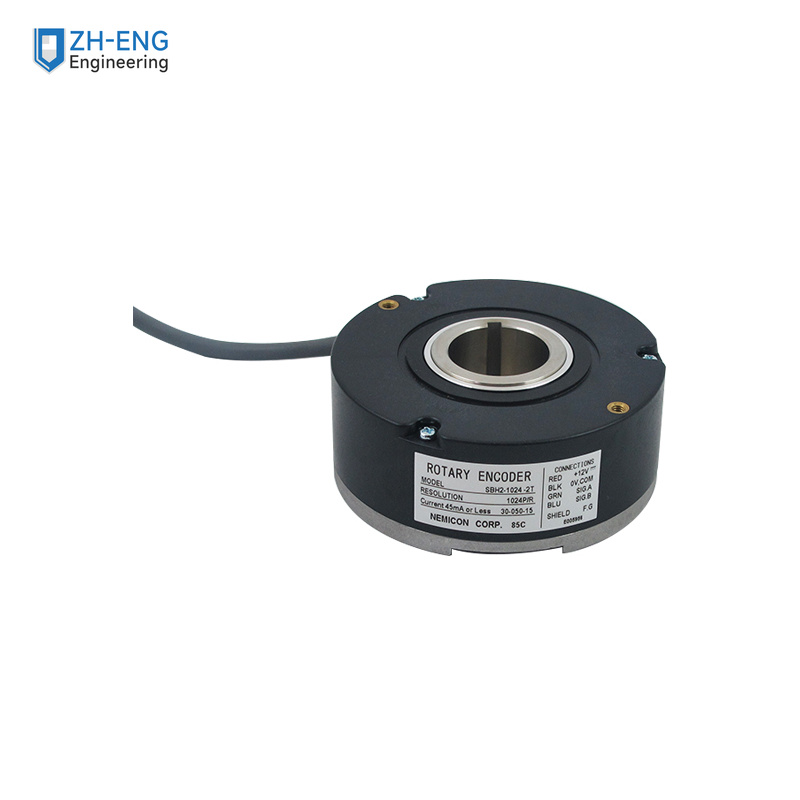

LABEL AND HOLLOW-SHAFT STRUCTURE REFERENCE
HOUSING AND CABLE-ENTRY VIEW
REAR MOUNTING FACE
CABLE, CONDUCTORS AND HARDWARE
Official SBH Reference
| Item | Reviewed reference | Order check |
|---|
| Model / resolution | SBH2-1024-2T / 1024 P/R | Confirm the full physical nameplate |
| Supply / output designation | 2T and 2MT: DC 10.8–13.2 V; complementary-output family reference | Verify controller input and wiring |
| Current / sink current | 60 mA maximum / 40 mA maximum | Confirm the exact supplied revision |
| Frequency response | 150 kHz for 2T / 2MT | Match the drive feedback input |
| Mechanical size | 100 mm body; up to 30 mm shaft diameter | Measure bore, keyway, mounting and clearance |
| 512 / 1024 P/R mechanics | 7.35 × 10⁻² N·m starting torque; 19.6 N thrust; 39.2 N radial | Check motor shaft and installation loads |
| Speed / temperature | 500 min⁻¹ continuous, 2500 min⁻¹ instantaneous; −10 to +70 °C | Confirm site duty and environment |
The values above come from NEMICON's SBH family document and the 1024 P/R / 2T designation. The distributor suffix 30-006-24 is not used to infer an unverified bore, cable length or connector.
512 / 1024 P/R Dimension Reference
OFFICIAL SBH 512 / 1024 P/R FAMILY DRAWING — VERIFY ACTUAL BORE AND MOUNTING
Buyer Confirmation Checklist
Full identity
Send a sharp photo of the complete model and suffix, manufacturer label and any revision or serial marking.
Electrical interface
Confirm supply, output circuit, A/B/Z signals, conductor colors, cable length, connector and controller feedback input.
Mechanical fit
Check bore, keyway, shaft fit, body diameter, mounting holes, cable direction, axial clearance and anti-rotation arrangement.
Frequently Asked Questions
Can any SBH 1024 P/R unit replace it?
No. Match the full nameplate, output circuit, bore, cable, termination and mounting.
What does 2T indicate?
The SBH document groups 2T and 2MT as complementary-output versions. Confirm exact wiring before connection.
Is 30-006-24 confirmed?
It appears in distributor references, not in the backend model. Verify it on the supplied unit.
What records are required?
Provide encoder, motor and drive labels, bore and connector photos, cable details and installed-position dimensions.
Compatibility note: Encoder selection, wiring, alignment and drive commissioning affect elevator motion feedback. Qualified elevator personnel must confirm the exact unit and site interface before installation.
