Product Introduction

Eight-Groove Wire-Rope Gripper and Lifting Fixture

Name: Gripper
SKU: SH-08030135
Price: 139.82 USD
Availability: InStock

A bolted multi-groove rope-handling fixture for matched elevator rope-maintenance work. The assembly combines a lifting-eye main plate, a separate grooved clamping plate and six clamping bolts. Select the exact groove, rope and documented working-load configuration for the job.

Product Views

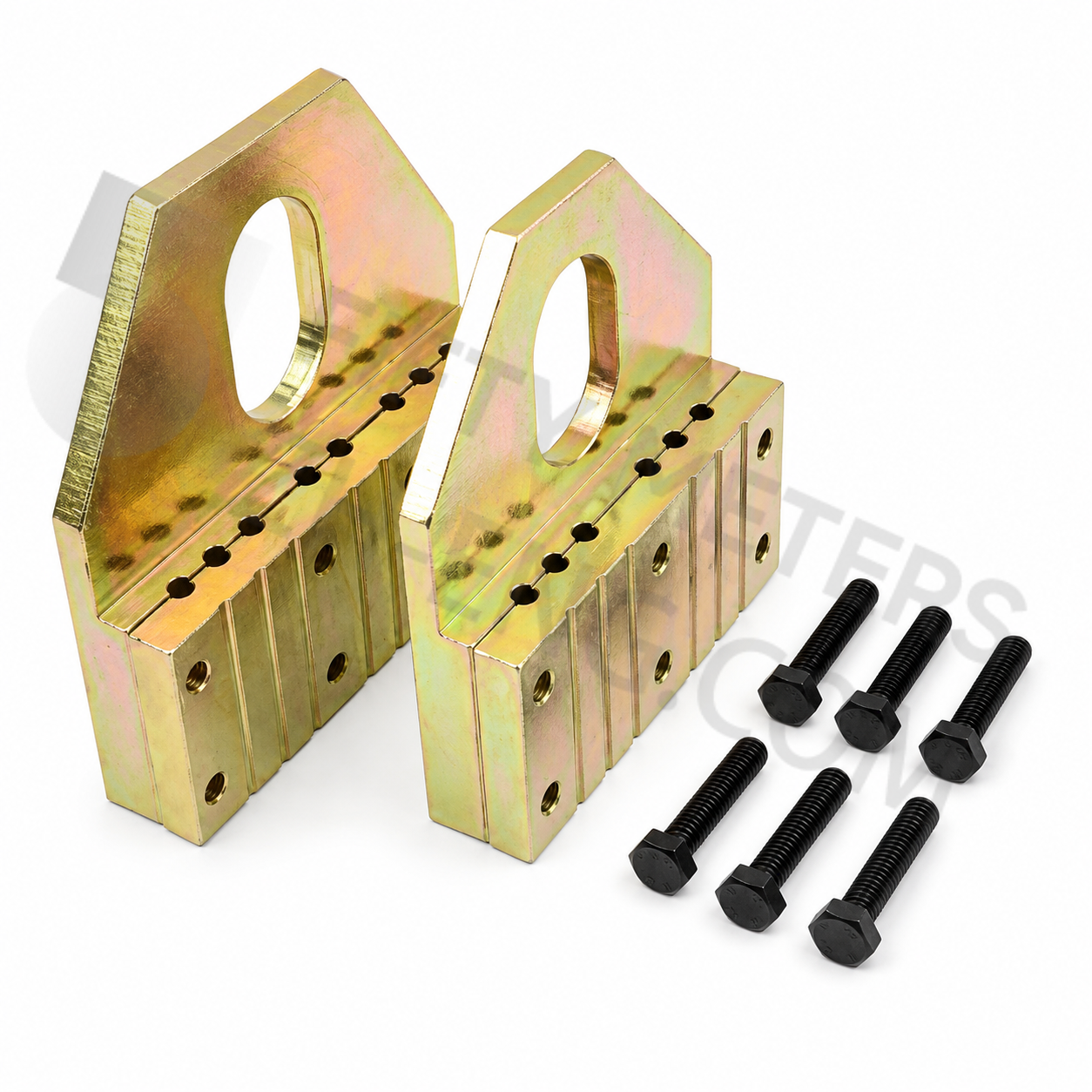

Lifting-eye main plate, clamping plate and six bolts

Groove and fixing-hole layout with all six bolts

Product Information

Item	Specification
Product	Wire-rope gripper / clamping lifting fixture
Groove selection	8 grooves
Rope-diameter selection range	Ø8-Ø13 mm according to exact groove/clamp configuration
Surface finish	Yellow zinc-plated configuration
Assembly	Lifting-eye main plate and separate grooved clamping plate
Clamping fasteners	Six socket-head bolts; grade 12.9 configuration according to exact order
Series overall-length reference	Approximately 160-170 mm; confirm exact selected model

Before Ordering

Confirm the exact groove count and dimensions, rope diameter/construction, lifting-eye dimensions, plate arrangement, matched fasteners and delivery quantity.
Confirm the marked working-load limit and manufacturer instructions for the exact fixture and rigging arrangement before use; do not infer lifting capacity from photographs, a family description or groove count.
Use only under a qualified lifting plan with the specified fasteners and tightening procedure. This rope-handling fixture is not a substitute for elevator safety gear or a permanent suspension termination.

Frequently Asked Questions

How many rope grooves does this selection have?

This selection is the eight-groove configuration. Match the exact groove dimensions to the rope before purchase.

Which parts make up the clamp?

The illustrated assembly has a lifting-eye main plate, separate grooved clamping plate and six clamping bolts. Confirm the ordered quantity and scope.

Can a working-load limit be inferred from its appearance?

No. Use the marked rating and manufacturer instructions for the exact fixture and complete rigging arrangement.

Does it fit every rope in a named elevator brand?

No. Match the actual rope, groove, fixture dimensions, fasteners and documented lifting requirements for the installation.
