SGS-T22
Copy-ready English product reference for independent websites and B2B inquiries
PRODUCT DESCRIPTION
SGS-T22 is supplied as an elevator-system component for project-specific installation, replacement or modernization work. The original published product drawings and parameter images are preserved below as the primary technical reference. Final compatibility must be verified against the elevator design and site conditions.
SELECTION HIGHLIGHTS
· Model-specific published reference images.
· Suitable for project-based selection and quotation.
· Technical dimensions and ratings must be confirmed before purchase.
· Installation must follow the approved elevator design and applicable safety requirements.
ORDERING & SAFETY NOTE
Confirm the exact model, dimensions, electrical interface, operating range, installation arrangement, applicable standard, certificate requirements and project conditions before ordering. Elevator components are safety-critical and must be selected and installed by qualified personnel.
INQUIRY CALL TO ACTION
Send the model, quantity, nameplate or drawing and complete elevator project requirements to ZH-ENG Engineering for configuration verification and quotation.
Frequently Asked Questions
What configuration is shown for SGS-T22?

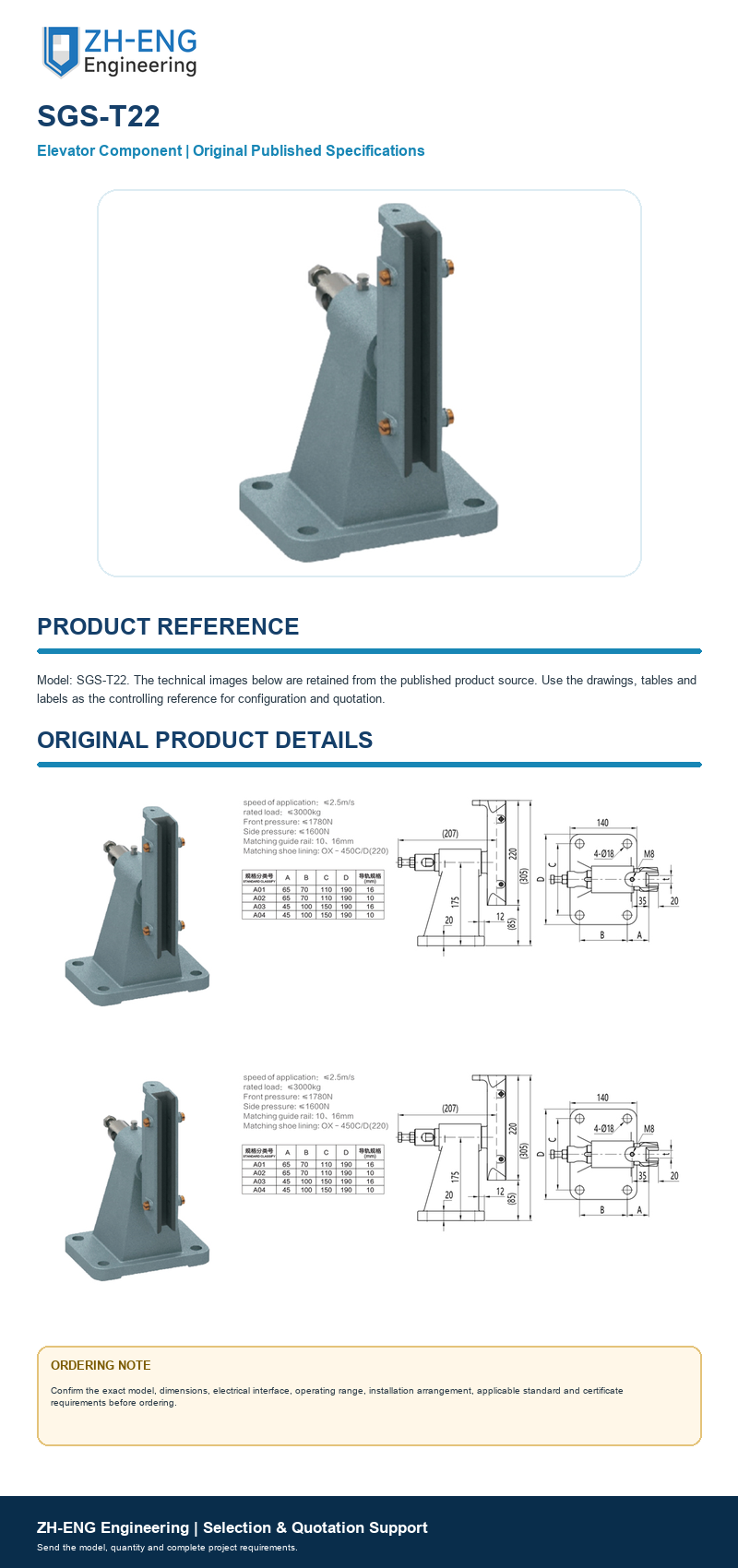

The exact product image shows a metal sliding guide-shoe bracket with a dark replaceable insert and base mounting holes. This confirms the visible construction only; it does not establish hidden ratings or interfaces.
Which mechanical dimensions determine guide-shoe fit?
Check guide-rail profile, insert width and depth, bracket geometry, mounting-hole pattern and running clearance against the approved drawing.
Which guide-rail and insert details determine fit?
Confirm guide-rail profile, insert dimensions and material, bracket geometry, running clearance and mounting pattern from the approved guide-shoe drawing.
