MCK100 Traction Machine Series
The MCK100 traction-machine range shown here covers verified 2:1 configurations for 450 kg and 630 kg rated loads at speeds from 1.0 to 1.75 m/s.
Product Model and Features

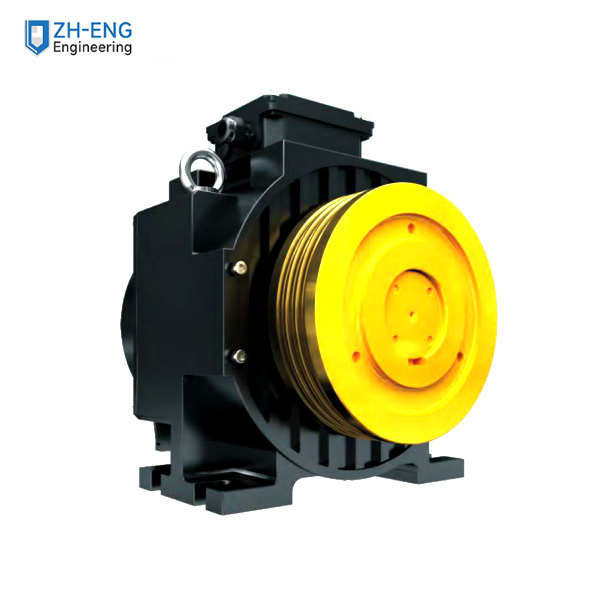

Product View
Technical Drawing
The drawing provides front and side mounting references for the MCK100 configuration. Visible fixed references include an overall height of 440 mm, a 223 mm centreline height, a 115 mm side reference and a 140 mm base reference. Apply the complete drawing for the selected configuration, including its L1 reference, when checking machine-room mounting and clearance.
Product Information and Specifications
| Rated load | Rated speed | Roping | Rated power |
|---|---|---|---|
| 450 kg | 1.0 m/s | 2:1 | 3.1 kW |
| 450 kg | 1.5 m/s | 2:1 | 4.7 kW |
| 450 kg | 1.6 m/s | 2:1 | 4.4 kW |
| 450 kg | 1.75 m/s | 2:1 | 4.8 kW |
| 630 kg | 1.0 m/s | 2:1 | 4.2 kW |
| 630 kg | 1.5 m/s | 2:1 | 6.4 kW |
| 630 kg | 1.6 m/s | 2:1 | 6.2 kW |
| 630 kg | 1.75 m/s | 2:1 | 6.8 kW |
Before You Buy
- Select the configuration by rated load, rated speed and rated power.
- All listed variants use 2:1 roping; installation dimensions must follow the applicable MCK100 drawing.
- Brake, encoder and drive-system selection should correspond to the chosen machine configuration.
Frequently Asked Questions
Which rated-load options are listed for MCK100?
The verified range includes 450 kg and 630 kg configurations.
Which rated speeds are available in the listed range?
The table includes 1.0, 1.5, 1.6 and 1.75 m/s, depending on the selected load configuration.
How should the correct MCK100 configuration be selected?
Use the required rated load and speed to identify the corresponding rated-power row, then apply the matching installation drawing for that configuration.
