MODEL-SPECIFIC INFORMATION

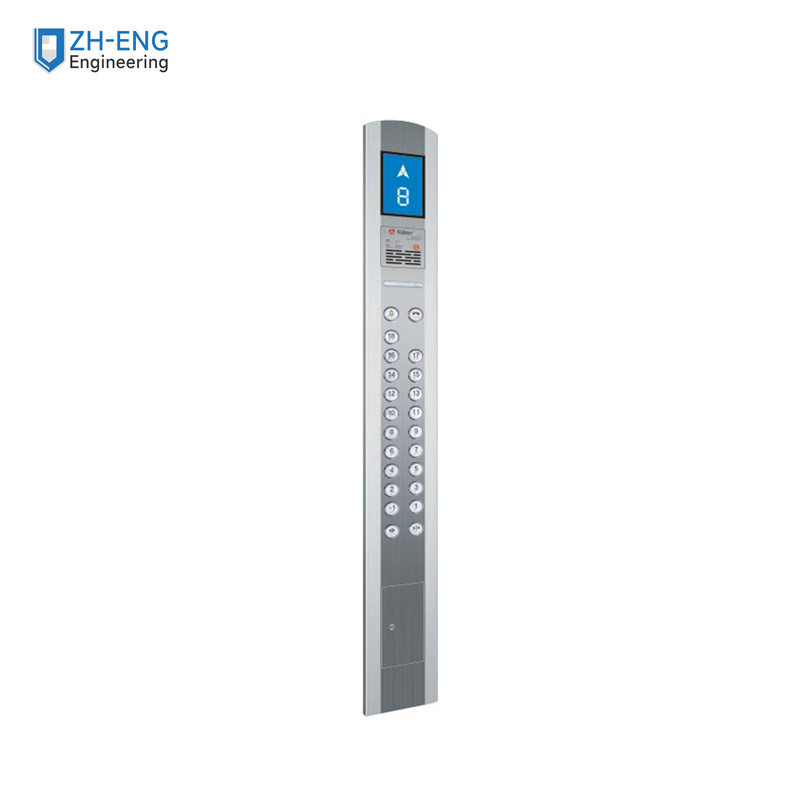

SH-COP-640 Series Information
This section uses the supplied technical reference. Variants that share this source are consolidated here once.
| Item | Reviewed reference | Order check |
|---|
| Applicable range | 2–36 floors | Confirm against the approved project drawing |
| 2–14 floors | A 1380 / B 1330 / C 180 / D 160 mm | Confirm against the approved project drawing |
| 15–26 floors | A 1580 / B 1530 / C 180 / D 160 mm | Confirm against the approved project drawing |
| 27–36 floors | A 1580 / B 1530 / C 210 / D 190 mm | Confirm against the approved project drawing |
| Depth / ends | 70 / 115 mm | Confirm against the approved project drawing |
Model confirmation: Confirm project-specific interfaces and options before order.
Available COP Models
Review the full series below. Display content, button count and auxiliary functions are representative and must be confirmed against the project schedule.
SH-COP-010
SH-COP-011
SH-COP-012
SH-COP-020
SH-COP-030
SH-COP-040
SH-COP-050
SH-COP-060
SH-COP-070
SH-COP-080
SH-COP-090
SH-COP-508
SH-COP-509
SH-COP-510
SH-COP-511
SH-COP-512
SH-COP-620
SH-COP-650
SH-COP-660
SH-COP-670
SH-COP-693
SH-COP-680
SH-COP-690
SH-COP-695
SH-COP-691
SH-COP-696
SH-COP-697
SH-COP-698
SH-COP-699
SH-COP-707
Product Functions
01
Passenger controls
Floor selection and common door, alarm or service controls are arranged according to the approved schedule.
02
Display and indication
Floor and travel-direction indication depends on the selected display module and compatible controller interface.
03
Project options
Intercom, key switches, accessibility controls and other devices are included only when specified and confirmed.
Configuration and Installation
| Item | Project reference | Order check |
|---|
| Panel layout | Button quantity, spacing, markings and auxiliary devices follow the project-specific arrangement. | Approve the final layout drawing |
| Finish | Surface treatment and colour depend on the selected model. | Confirm finish or approved sample |
| Mounting | Opening, back-box dimensions and fixing details must match the car operating wall. | Check construction and clearances |
| Electrical interface | Connector, wiring, power and communication protocol must match the controller. | Confirm controller interface |
Buyer Confirmation Checklist
01
Electrical interface
Confirm controller, communication protocol, connector, power supply and wiring requirements.
02
Mechanical installation
Confirm faceplate dimensions, opening, back box, wall or car-panel construction and fixing method.
03
Project configuration
Confirm markings, finish, quantity, display content, button arrangement and any accessibility or special functions.
Selection note: Product images show representative configurations. Production should follow the approved project-specific drawing. Final system integration, local compliance and site acceptance remain subject to the responsible elevator contractor and local requirements.
