FX-T123 Metal-Housed Magnetic Reed Switch

Name: Monostable Switch
SKU: SH-01030035
Price: 0.29 USD
Availability: InStock

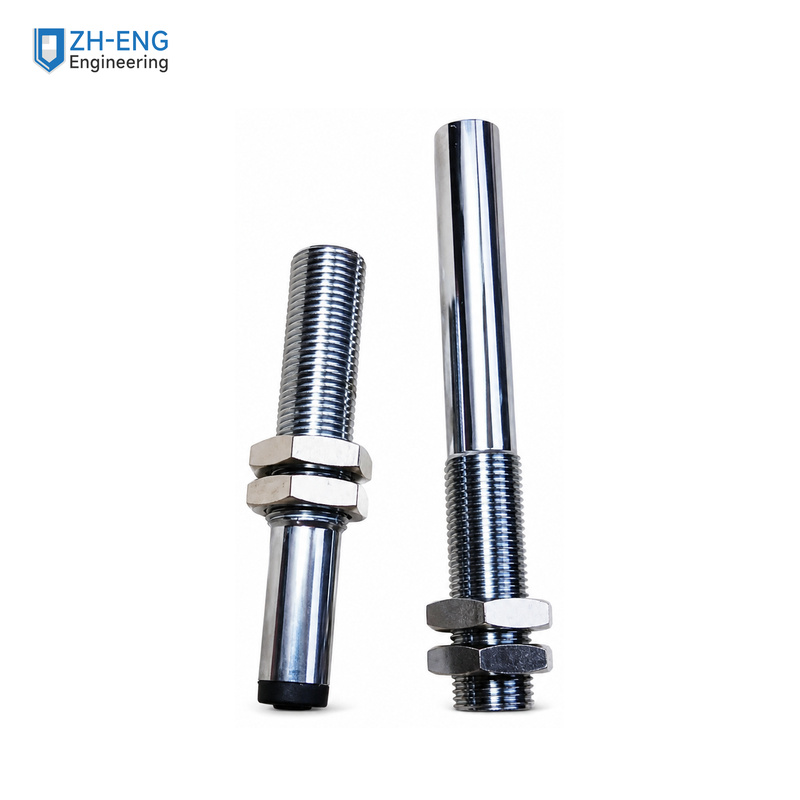

A cylindrical magnetic reed switch for elevator position-feedback arrangements. The metal housing combines a threaded fixing section, two mounting nuts and a cable outlet. The complete-cable view and independent body views show the same sensor arrangement; select the contact behaviour and circuit rating for the controller input.

Product Views

Outline Dimensions

Dimensions in mm. Metal-body length: 63 mm. Body diameter: 12 mm. The illustrated dimensions exclude the free cable length. Confirm the selected fixing and operating clearance.

Product Information

Item	Specification
Model	FX-T123
Operating principle	Magnetic reed sensing
Metal-body length	63 mm
Body diameter	12 mm
Sensing-distance reference	5–25 mm, dependent on the matching magnet and magnetic field
Housing options	Plated brass / plated steel, according to version
Lead arrangement	Three-core industrial cable, PVC or rubber configuration
Protection configuration	IP67 sealed configuration

Contact and Circuit Selection

Item	Selection information
Contact behaviour	Normally-open / normally-closed changeover, with monostable or bistable configurations according to version
Circuit-voltage envelope	Up to 250 V AC/DC, according to the selected contact version; common system examples include AC 110 V and DC 24 V
Maximum rated current	Up to 1.0 A, according to the switching-load conditions
Maximum rated switching power	50 W / VA, according to version and load
Rating combination	Voltage, current and switching-power maxima are not simultaneous operating values; match the complete switching-load rating

Before Ordering

Select the required NO/NC contact behaviour and monostable or bistable version for the controller circuit.
Match the circuit voltage, switching load, magnet, sensing gap and installation orientation. Do not infer wiring functions from lead colours in a photograph.
Confirm the 12 mm body diameter, 63 mm body length, fixing clearance, cable requirements and quantity. Electrical connection and adjustment require qualified personnel.
